IntelliRay Quad

Large area UV programmable flood curing system

Expand AllCollapse
IntelliRay Quad Product Summary

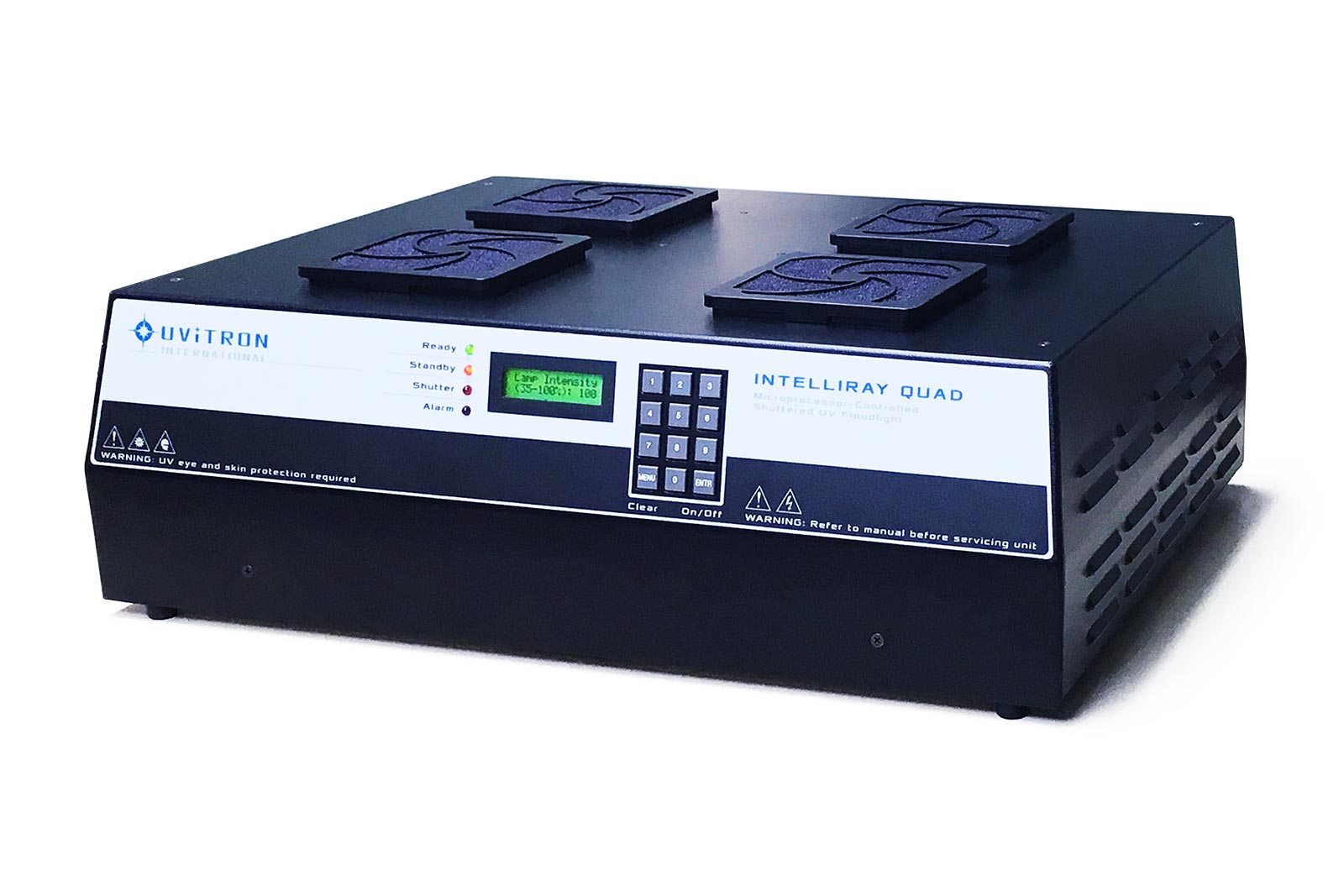

The IntelliRay Quad is a large area, programmable UV flood curing system. All system components are integrated into a single unit that can be easily mounted on the optional Rayven Quad benchtop UV curing chamber, or anywhere on a factory floor, with virtually no cabling or remote power boxes required. Just mount the lamp head, connect the AC line cord and start timed exposure curing.

The system contains an integrated retractable shade type shutter, which allows for repeatable exposure timing and shields the user from UV rays. The system’s LCD display and digital keypad make programming and monitoring of curing operations a snap. The four long-life arc lamps and parabolic reflectors illuminate a 16 x 12” curing area with evenly distributed UV light. The arc lamps are powered by the state-of-the-art UV Power-Plus Lamp Driver. For a compact version of this system, see the IntelliRay.

IntelliRay Quad Product Video
Additional Details

System timers: Duration of curing is controlled by a 1–9,999 second or hour exposure timer that actuates the shutter. The exposure timer also has a user-controlled manual mode and a mode for use in long exposure applications such as artificial aging or solar panel testing.

Lamp intensity control: The system has a user-adjustable intensity level. This feature provides the flexibility of choosing appropriate curing intensity for sensitive materials. You can password protect time, intensity and all other settings.

Standby mode: The unit automatically reduces lamp power when the shutter is closed. This reduces excessive heat and therefore increases the life of system components without the need to power down.

Status indicators: Four front panel LEDs are provided: lamp ready, system-in-standby mode, shutter open and system alarm.

External logic signal interface: The system can be monitored and controlled remotely using digital logic signals available at a 15 pin D-sub connector on the unit’s rear panel. The digital logic functions allow high-speed control of the IntelliRay for applications requiring a direct interface with machine controllers or PLCs.

External Logic Signal InterfaceRemote Control via PC serial port: The system can also be controlled remotely via an RS232 / RS485 serial port. A Windows™ compatible graphical interface program allows all system functions to be exercised (see photo), and with RS485, multiple units can be networked.

Lamp power regulation: The system’s switch mode power supply maintains constant lamp power regardless of variations in AC line input or lamp voltages. The result is repeatable curing times throughout the life of the lamp.

Forced air cooling: Variable speed cooling fans with removable filters direct air to critical system components, ensuring cool operation and high system reliability.

Best-in-class lamp life: The enhanced lamp life of the system rivals even microwave and LED systems, significantly lowering operating and maintenance costs.

Typical lamp life (intensity versus time)

Accessories & Options

Foot pedal control: An optional shutter control foot pedal is available for applications requiring hands-free operation. The pedal can be used in conjunction with the system’s exposure timer or in a manual mode, in which the shutter remains open as long as the pedal is pressed.

Optional lamp spectrums: The IntelliRay Quad is available with UVA, UVB and visible spectrum lamps, ensuring compatibility with adhesives and coatings from all manufacturers.

Dimensions & Specs
System Type:Parabolic Flood Curing System
Part #:UV2591-H
Lamp Power:2400W (4 x 600W)
Input Voltage:200–240 VAC ±10%
Input Current (Max):16A
Irradiance at 4″:110 mW/cm2 UVA, typical
Curing Area:16 x 12″
Weight:26.6 lbs.
Size (L x W x H):17.45 x 23 x 7.75”
System Configurations
System Part Numbers
Part No. ItemDetails
UV2591IntelliRay Quad, 240VAC, 50/60HzIncludes 600W UVA enhanced arc lamp, UV/IR protective glasses, power cord and manual
Accessories Part Numbers
Accessories Part Numbers
Part No.ItemDetails

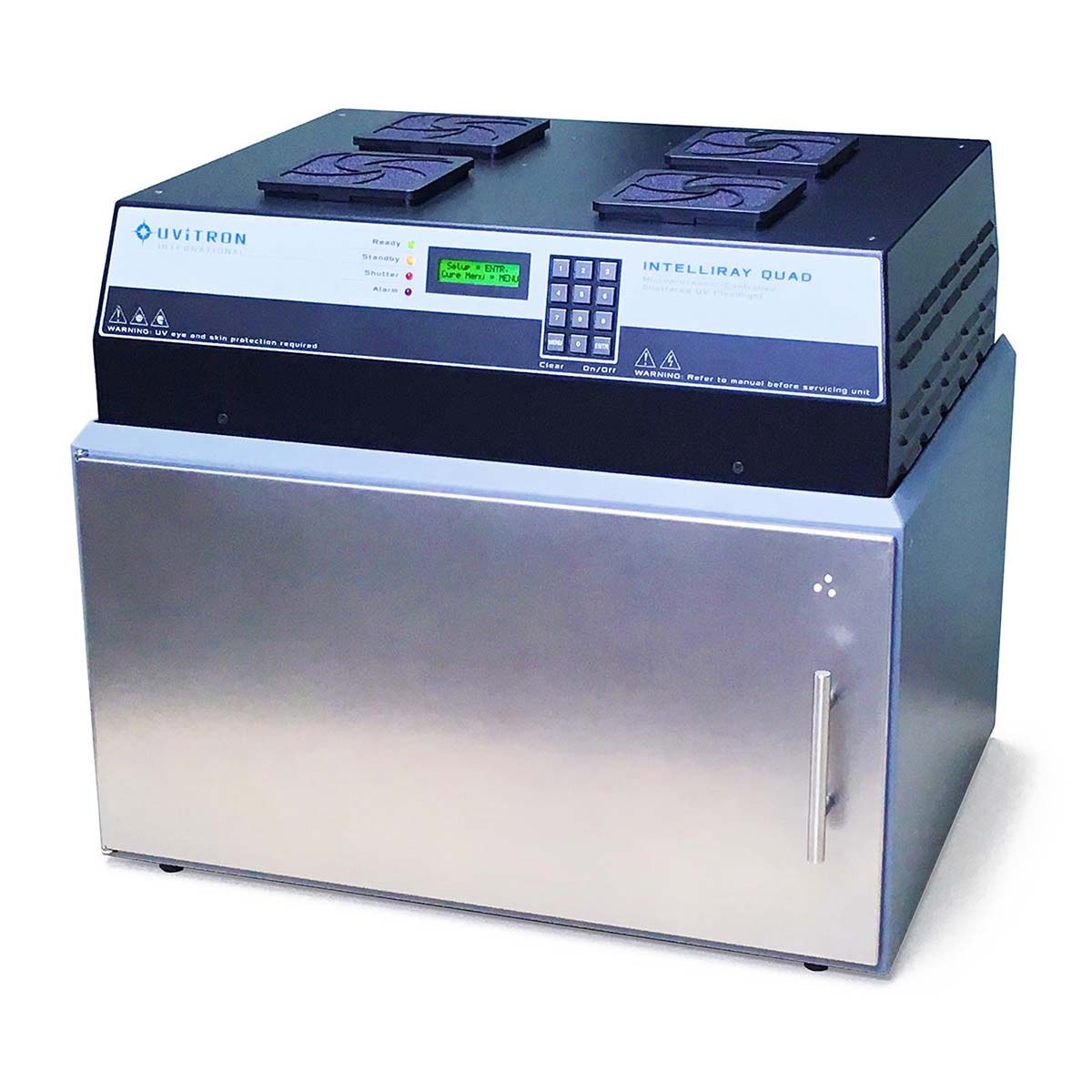

UV2875Rayven Quad Shielded Curing ChamberProvides full shielding and shutter door interlock
UV2605Quad Flood Filter GlassReplacement filter glass for SunRay and IntelliRay Quad floods. Filters shortwave and infrared wavelengths
UV2607IntelliRay Shutter ShadeReplacement shutter shade for IntelliRay Quad System
UV0725Shutter Control Foot Pedal Provides hands-free control of shutter and exposure timing
UV0527IntelliRay Remote Control Interface SoftwareWindows 98/ 2000/ XP/ Win7/ Win8/ Win10 GUI
UV0525RS232 Remote Interface CableFor use with above software
UV0526RS485/Logic Remote Interface CableControl from RS485 PC or digital logic
(Multiple)Power cordsMultiple types available
UV1450-XXUvicure Plus II Integrating RadiometerUVA, UVB or Visible ranges, 10-10,000mW/cm2
(Multiple)UV Curing TrayStainless steel non-stick surface
UV0495UV/IR Protective Safety GlassesOTG (fit over prescription eyewear), 3.0 shade
UV02231UV/IR Protective Safety GlassesSport contour, 3.0 shade
UV01889UV Protective Face ShieldLift-up face shield ideal for maximum UV/Visible light protection, 3.0 shade
Replacement Lamps:
UV0834UVA Metal Halide Lamp600W medium pressure
UV1884UVB Enhanced Lamp600W medium pressure
UV1074Visible Metal Halide Lamp600W medium pressure, 420nm
