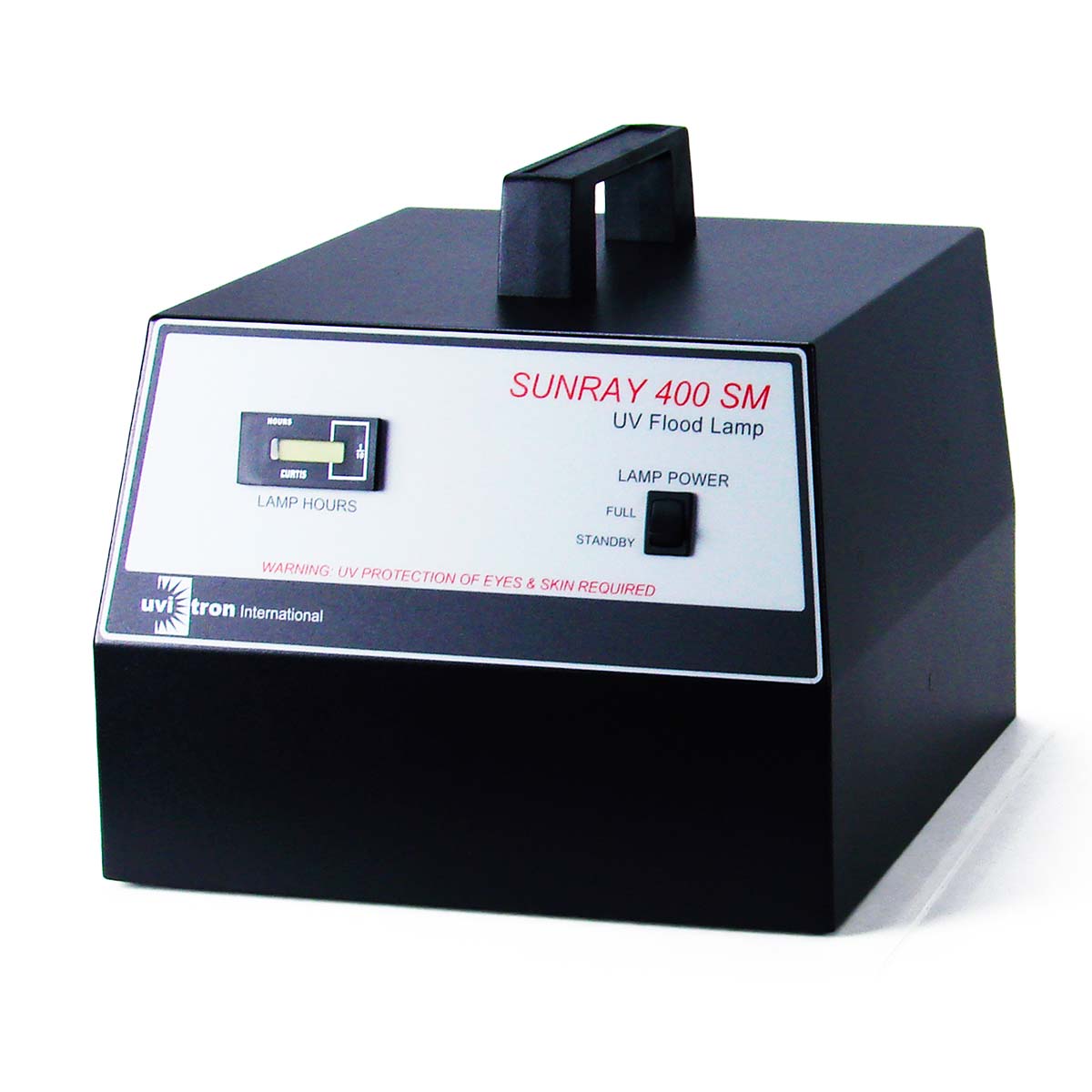

SunRay

Compact, high-power UV flood curing system

Expand AllCollapse
SunRay Product Summary

The SunRay is a compact, high-power UV flood curing system. All system components are integrated into a small lamp head, which can be easily mounted on the optional Stand & Shield, Rayven curing chamber or anywhere on a factory floor, with virtually no cabling or remote power boxes required. Just mount the head, connect the AC line cord, and start curing.

The long-life 400 or 600W arc lamp and parabolic reflector illuminate an 8 x 6″ curing area with evenly distributed UV light. The arc lamp is powered by the state of the art UV Power-Plus Lamp Driver. The head features a convenient carrying handle and a sliding height adjustment bracket.

For a larger version of this system, see the SunRay Quad.

SunRay Product Video
Additional Details

Lamp power regulation: The system’s switch mode power supply maintains constant lamp power regardless of variations in AC line input or lamp voltages. This regulation provides for repeatable curing times and longer lamp life.

Standby mode: The unit features a standby mode rocker switch, which reduces lamp power when the system is idling. This mode can be used to reduce heat and stray UV light output while the system is not in use.

Auto-range AC line input: The auto-ranging 90–132 / 180–265VAC line input makes the SunRay easy to use in any country, with no wiring changes or voltage select switching required.

Elapsed hour meter: A front panel hour meter tracks lamp age, allowing for consistent lamp replacement scheduling.

External logic signal interface: The system can be remotely monitored and controlled using logic signals available at a 15 pin D-sub connector on the unit’s rear panel. The following signal types are available:

  • Lamp standby control input for variable PWM control or for minimizing of lamp intensity during idle periods.
  • Hour meter reset input for zeroing hours after lamp replacement.
  • 24VDC at 1A output for powering external fans, relays, solenoids or motors.

Forced air cooling: Baffled fan cooling directs air to critical system components, ensuring cool operation and high system reliability.

Accessories & Options

Optional lamp spectrums: The SunRay is available with UVA, UVB and visible spectrum lamps for the 400W and 600W systems, ensuring compatibility with adhesives and coatings from all manufacturers.

Mounting options: Mounting options include:

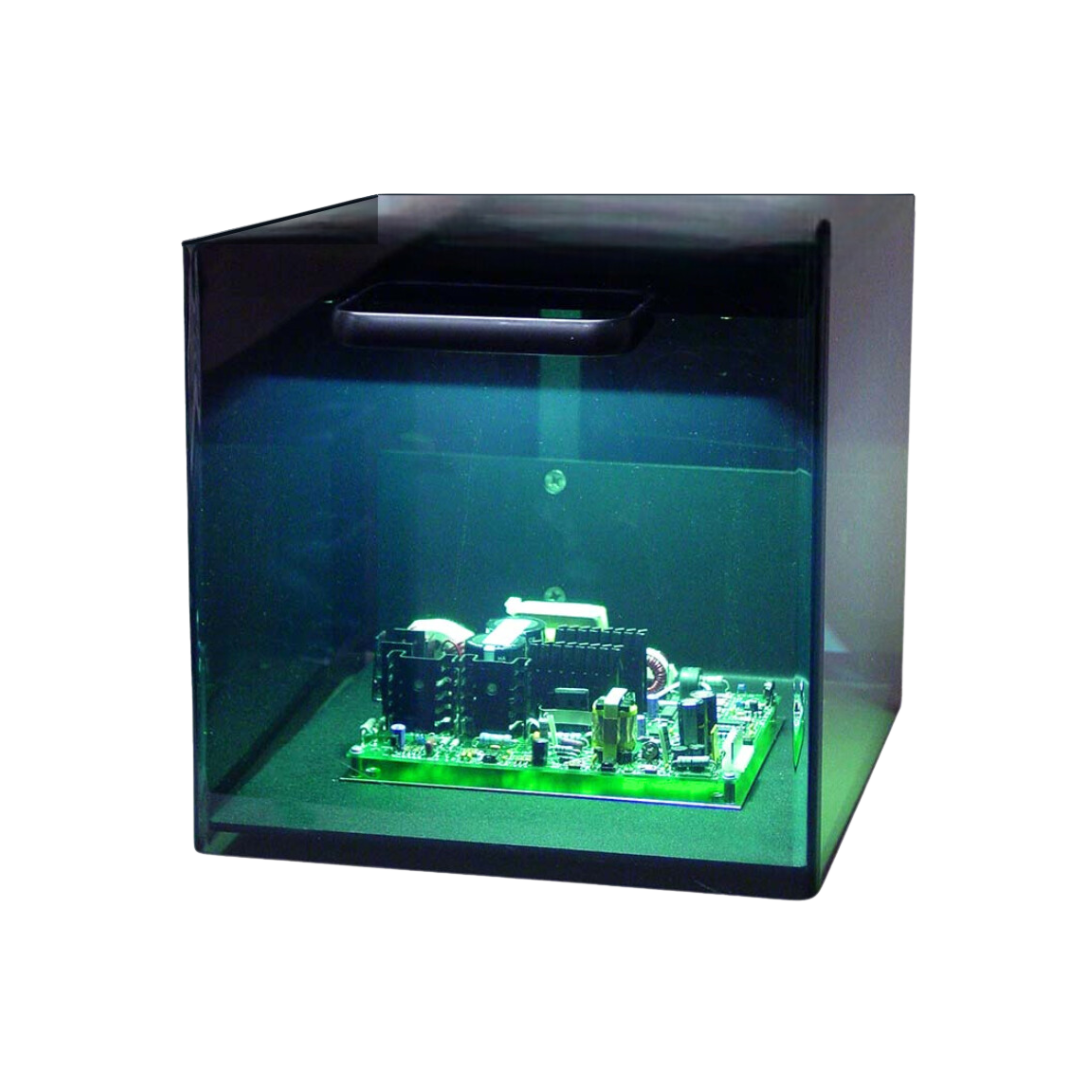

  • Stand & Shield, an economical adjustable-height mounting stand and wrap-around UV shield
  • Rayven, a fully enclosed curing chamber with door interlock and adjustable shelf
  • UV Conveyor 40 Plus for conveyor curing applications
Dimensions & Specifications
Specifications
System TypeParabolic Flood Curing System
Part #UV0446UV0830
Lamp Power400W600W
Input Voltage100–120 / 200–240 VAC ±10% (auto-ranging)
Input Current (Max)7.0/3.5 Amps10.0/5.0 Amps
Irradiance @ 3"115 mW/cm2 UVA, typical175 mW/cm2 UVA, typica
Curing Area8 x 6"
Weight11 lbs.
Size (L x W x H)11 x 10 x 9”
Accessories Part Numbers
Part No. ItemDetails
UV0454Adjustable Height Flood StandUsed with SunRay for bench top batch curing
UV0455Wrap-around UV Shield Provides basic UV shielding (used with UV454)
UV1094Rear UV ShieldSupplemental rear protection for blocking low level backside UV light for applications where complete shielding is desirable (used with UV454 & 455)
UV2128Flood Filter GlassReplacement filter glass for SunRay and IntelliRay floods. Filters shortwave and infrared wavelengths
UV2676Dichroic Flood Filter GlassOptional dichroic filter glass for SunRay and IntelliRay floods. Passes shortwave and infrared wavelengths
(Multiple)Power CordsMultiple types available
(Multiple)UV Curing TrayStainless steel non-stick surface
UV1450Uvicure Plus II Integrating RadiometerUVA, UVB or Visible ranges, 10–10,000mW/cm2
UV0495UV/IR Protective Safety GlassesOTG (fit over prescription eyewear), 3.0 shade
UV02231UV/IR Protective Safety GlassesSport contour, 3.0 shade
UV01889UV Protective Face ShieldLift-up face shield ideal for maximum UV/Visible light protection, 4.0 shade
UV00503SunRay 400 Instruction ManualUsage and maintainence info for SunRay 400 System
UV00884SunRay 600 Instruction ManualUsage and maintainence info for SunRay 600 System
Replacement Lamp Part Numbers
Part No.ItemDetails
UV0320UVA Metal Halide Lamp400W medium pressure
UV0544UVB Enhanced Lamp400W medium pressure
UV0489Visible Metal Halide Lamp400W medium pressure, 420nm
UV0545Visible Metal Halide Lamp400W medium pressure, 460nm
UV0834UVA Metal Halide Lamp600W medium pressure
UV1884UVB Enhanced Lamp600W medium pressure
UV1074Visible Metal Halide Lamp600W medium pressure, 420nm

Payment Information

Purchase Orders

To open a new customer account with us, please send the following information regarding your company:

  • Company name
  • Company contact
  • “Bill To” address
  • Telephone and fax numbers
  • Three trade references

Please be sure to include the following information on your purchase requests to ensure quick and accurate processing and shipment of your order:

  • Complete “Ship To” address, including postal code where applicable
  • Required shipping method

Unless otherwise specified, all shipments will be sent via UPS.

New Customer Form | Credit Application



Fax & Email Orders

To place an order, send your signed purchase order and company information (see above) to the attention of our Sales Department by fax at 413.731.7767 or by email to orders@uvitron.com.



Phone Orders (U.S. Customers Only)

We are happy to process your product orders by phone at 413.731.7835. We accept MasterCard, Visa, Discover and American Express for phone order payments (see Credit Card Order information).



Credit Card Orders

credit-cards

In order for us to accurately and safely process your credit card orders, we request that you supply us with complete account, cardholder and shipping information. Please complete the following form and send it to us via email or fax, or be prepared to supply the information over the phone to one of our customer service representatives.

Credit Card Order Form



International Orders

We have extensive experience processing and fulfilling international as well as domestic orders. We have successfully shipped products to destinations around the globe.

To contact us from outside the United States, call 00.1.413.579.6406 or send us an email message at sales@uvitron.com

For first-time international orders, prepayment is required. Payments may be made by certified bank check or direct wiring of funds (this information must be provided at time of order).



Financing

We offer financing through CrestCapital. Learn more about financing the purchase of equipment by clicking here for instant payment quotes and/or to apply online.



Shopping Online

uvitron shopping

To order UV curing accessories online, visit our online store. We offer a variety of lamps, radiometers, light guides and other accessories for our flood and spot curing systems.



Return Policy

All product returns must be first authorized by our Customer Service department. A Uvitron service representative will issue a Return Material Authorization Number, which must be printed clearly on the top of the shipping carton and on the accompanying packing slip. Any unauthorized returns will be refused by our Receiving Department, so please call us first.

Returned products or demonstration units must be received in new condition, with no damage, dents, scratches or adhesive stains. Products should also be sent in the original packaging and shipping cartons to ensure proper protection during return transit. Some items may be subject to restocking fees. Account credits or refunds will be issued after returned equipment is received and inspected. Unfortunately, we cannot accept custom or non-stocked items returned for credit or refund.

To speak with a customer service representative, call 413.579.6406 or email customer_service@uvitron.com.

SunRay

Request Quote for SunRay

Request a quote for the version of the SunRay flood system that best fits your needs.

Below you can choose from the different available models, components and accessories for this system. You can select each item one at a time or begin with the Default Configuration as a basis, and build from there.

If you have any questions contact us directly.

Quote Default Configuration
Remove System from Quote
UV0446 - SunRayLampPower-1,SunRayLampTypes-1,SunRayMountingOptions-1
UV0446-NL - SunRayLampPower-1,SunRayLampTypes-2,SunRayMountingOptions-1
UV0446-NL - SunRayLampPower-1,SunRayLampTypes-3,SunRayMountingOptions-1
UV0446-NL - SunRayLampPower-1,SunRayLampTypes-4,SunRayMountingOptions-1
UV0830 - SunRayLampPower-2,SunRayLampTypes-5,SunRayMountingOptions-1
UV0830-NL - SunRayLampPower-2,SunRayLampTypes-6,SunRayMountingOptions-1
UV0830-NL - SunRayLampPower-2,SunRayLampTypes-7,SunRayMountingOptions-1
UV0830-NL - SunRayLampPower-2,SunRayLampTypes-8,SunRayMountingOptions-1
UV0446 - SunRayLampPower-1,SunRayLampTypes-1,SunRayMountingOptions-2
UV0446-NL - SunRayLampPower-1,SunRayLampTypes-2,SunRayMountingOptions-2
UV0446-NL - SunRayLampPower-1,SunRayLampTypes-3,SunRayMountingOptions-2
UV0446-NL - SunRayLampPower-1,SunRayLampTypes-4,SunRayMountingOptions-2
UV0830 - SunRayLampPower-2,SunRayLampTypes-5,SunRayMountingOptions-2
UV0830-NL - SunRayLampPower-2,SunRayLampTypes-6,SunRayMountingOptions-2
UV0830-NL - SunRayLampPower-2,SunRayLampTypes-7,SunRayMountingOptions-2
UV0830-NL - SunRayLampPower-2,SunRayLampTypes-8,SunRayMountingOptions-2
UV0446 - SunRayLampPower-1,SunRayLampTypes-1,SunRayMountingOptions-3
UV0446-NL - SunRayLampPower-1,SunRayLampTypes-2,SunRayMountingOptions-3
UV0446-NL - SunRayLampPower-1,SunRayLampTypes-3,SunRayMountingOptions-3
UV0446-NL - SunRayLampPower-1,SunRayLampTypes-4,SunRayMountingOptions-3
UV0830 - SunRayLampPower-2,SunRayLampTypes-5,SunRayMountingOptions-3
UV0830-NL - SunRayLampPower-2,SunRayLampTypes-6,SunRayMountingOptions-3
UV0830-NL - SunRayLampPower-2,SunRayLampTypes-7,SunRayMountingOptions-3
UV0830-NL - SunRayLampPower-2,SunRayLampTypes-8,SunRayMountingOptions-3

System Type and Included Items

All SunRay system components are integrated into a small lamp head available in 400W or 600W arc lamp options. The default SunRay configuration comes with Flood Filter Glass, UVA enhanced arc lamp, UV/IR protective OTG glasses (3.0 shade with case), AC power cord (USA standard) and SunRay manual.

SunRay 400 Base System - UV0446-NL

Mid power 400W arc lamp, provides a good balance between temperature and higher intensity.

SunRay 600 Base System - UV0830-NL

High power 600W arc lamp, best for applications requiring maximum intensity for fast curing.

Choose Lamp Type

The SunRay is available with UVA, UVB & visible spectrum lamps, ensuring compatibility with adhesives and coatings from all manufacturers.

400W UVA lamp - UV0320

400W UVA enhanced arc lamp for SunRay system

400W UVB lamp - UV0544

400W UVB enhanced arc lamp for SunRay system

400W Visible (420nm) lamp - UV0489

400W Visible enhanced arc lamp (420nm peak) for SunRay system

400W Visible (460nm) lamp - UV0545

400W Visible enhanced arc lamp (460nm peak) for SunRay system

600W UVA lamp - UV0834

600W UVA enhanced arc lamp for SunRay system

600W UVB lamp - UV1884

600W UVB enhanced arc lamp with shortwave output for SunRay system

600W Visible (420nm) lamp - UV1074

600W Visible enhanced arc lamp (420nm peak) for SunRay system

Choose Mounting & Shielding Option

Provides shielding and mounting for SunRay.

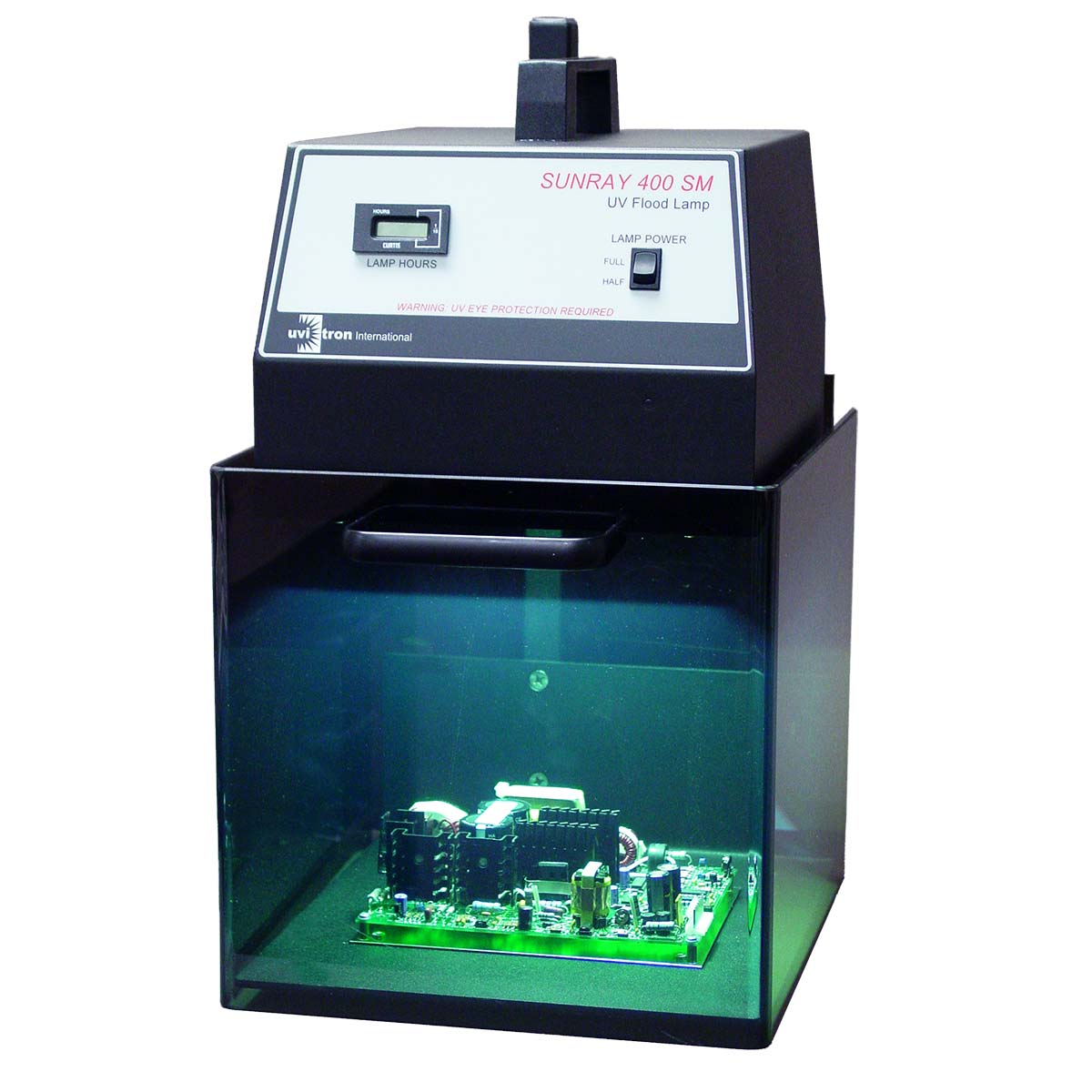

Flood Stand & Shield Kit - UV4003

SunRay economical shielding, includes mounting stand and front & rear shields.

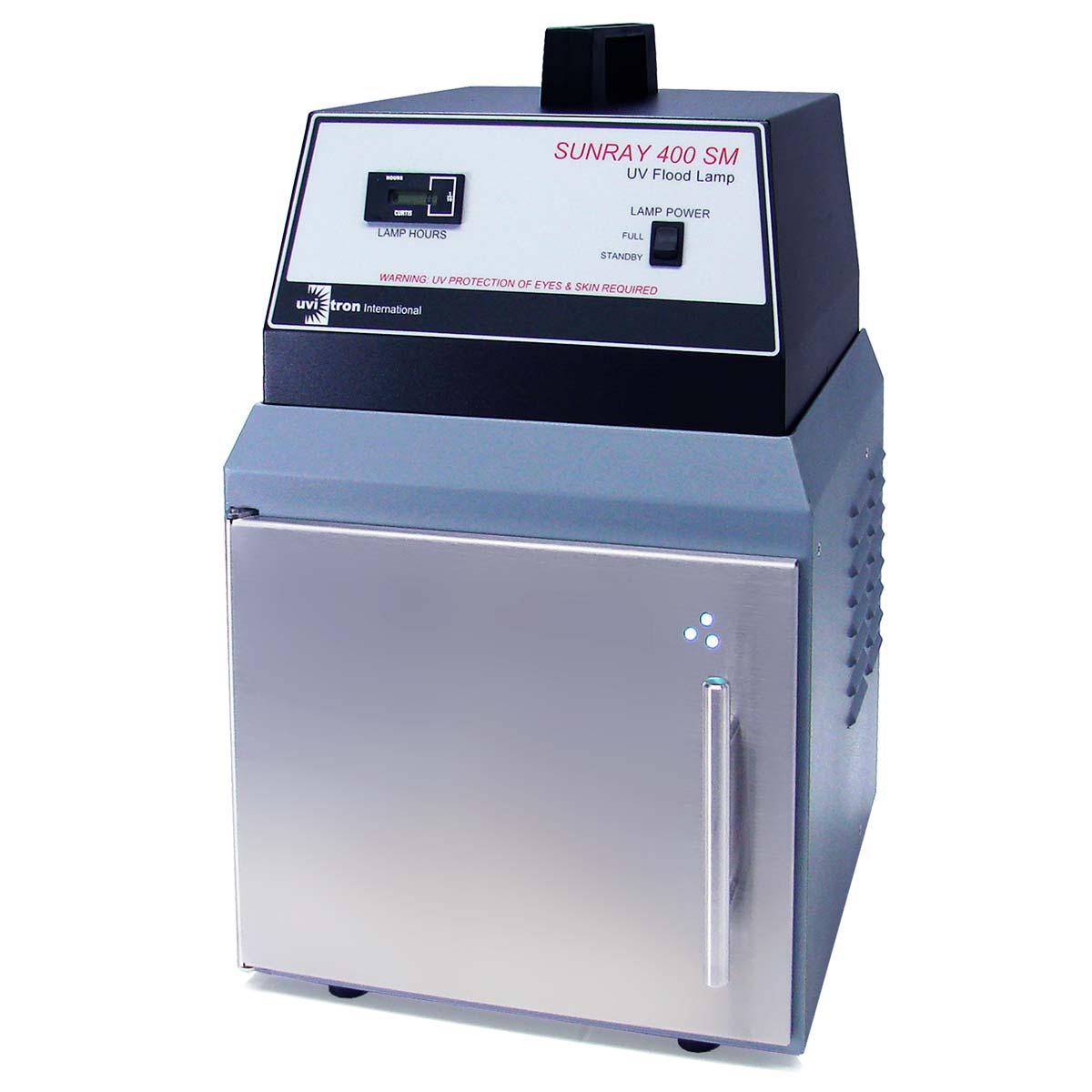

Rayven Chamber - UV1080

UV shielded curing chamber for IntelliRay & SunRay floods

No Mounting or Shielding Options

This selection removes all mounting and shielding options

Accessories

Click to add any accessories below that you would like included in your quote. To view or price more accessories or replacement parts, visit our online store.

UVICure Plus II Radiometer - UV1450-MA

Single Channel, Mid Power Radiometer to monitor SunRay intensity output in the UVA (320-390 nm) bandwidth. Ideal for UVA enhanced lamps. For other spectral types visit online store.

IS310 UV Logger - UV4007

Single Channel, Economical Profiling Radiometer to monitor SunRay intensity output in the UVA & UVB (280-400 nm) bandwidths. For other radiometer types visit online store.

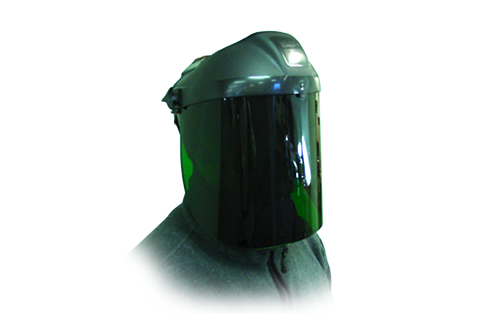

UV Protective Face Shield - UV1889
