The PortaRay LED is a compact, high-intensity handheld UV LED curing system designed for controlled curing of UV-curable adhesives, resins, and epoxies. Its broad 3.5 x 7.75″ curing area makes it ideal for larger bond lines, coated parts, assemblies, and production setups that need consistent exposure across a wider surface. Operation is simple and repeatable, thanks to instant LED on/off output, programmable timed exposures, and an integrated touchscreen interface for setting intensity and exposure duration directly from the unit.
Integrated Touchscreen Interface: Features an integrated touchscreen interface for setting intensity and exposure duration directly from the unit. Operators can quickly adjust cure settings, run timed exposures, and maintain repeatable process parameters without needing a separate controller.

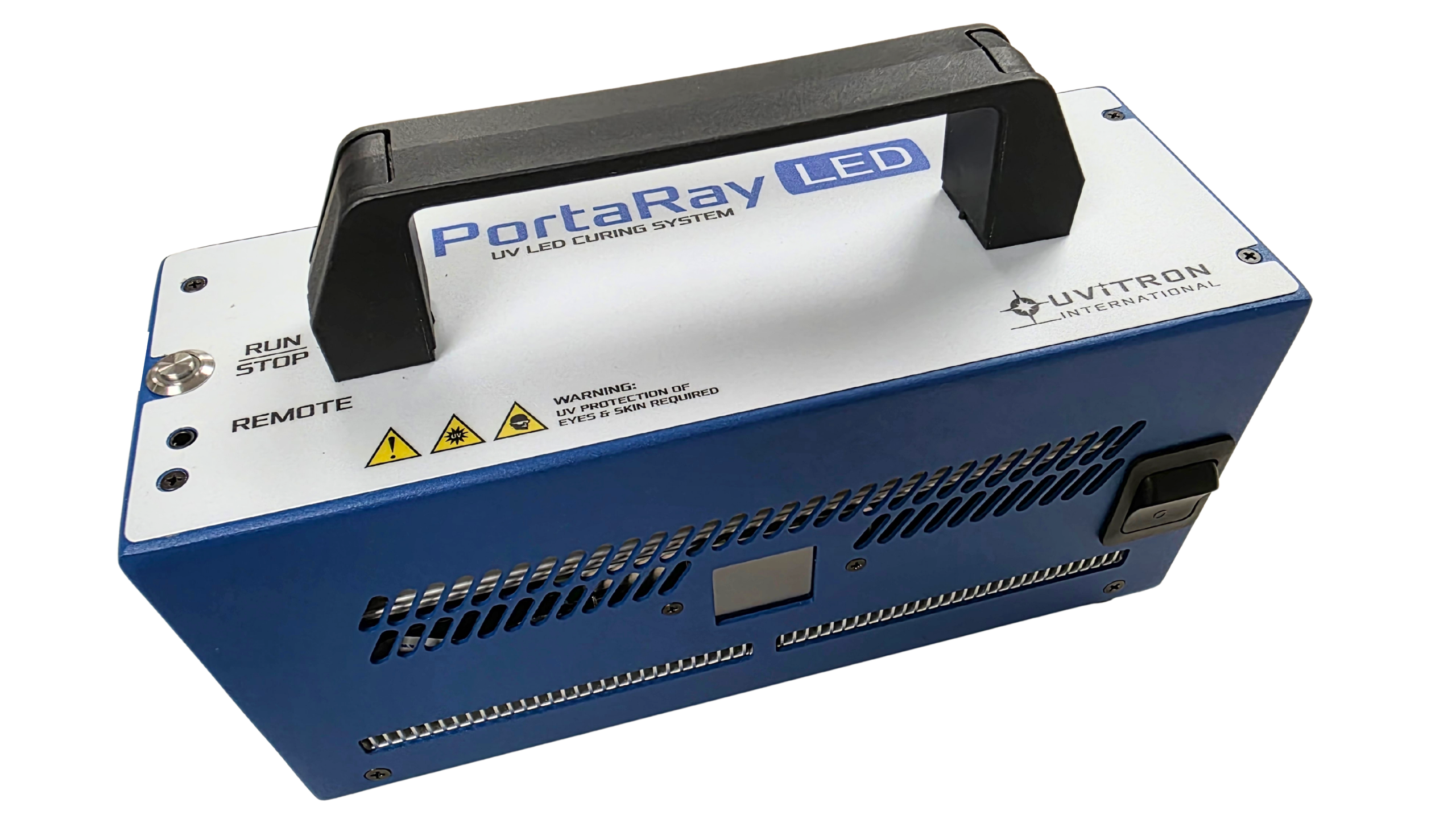

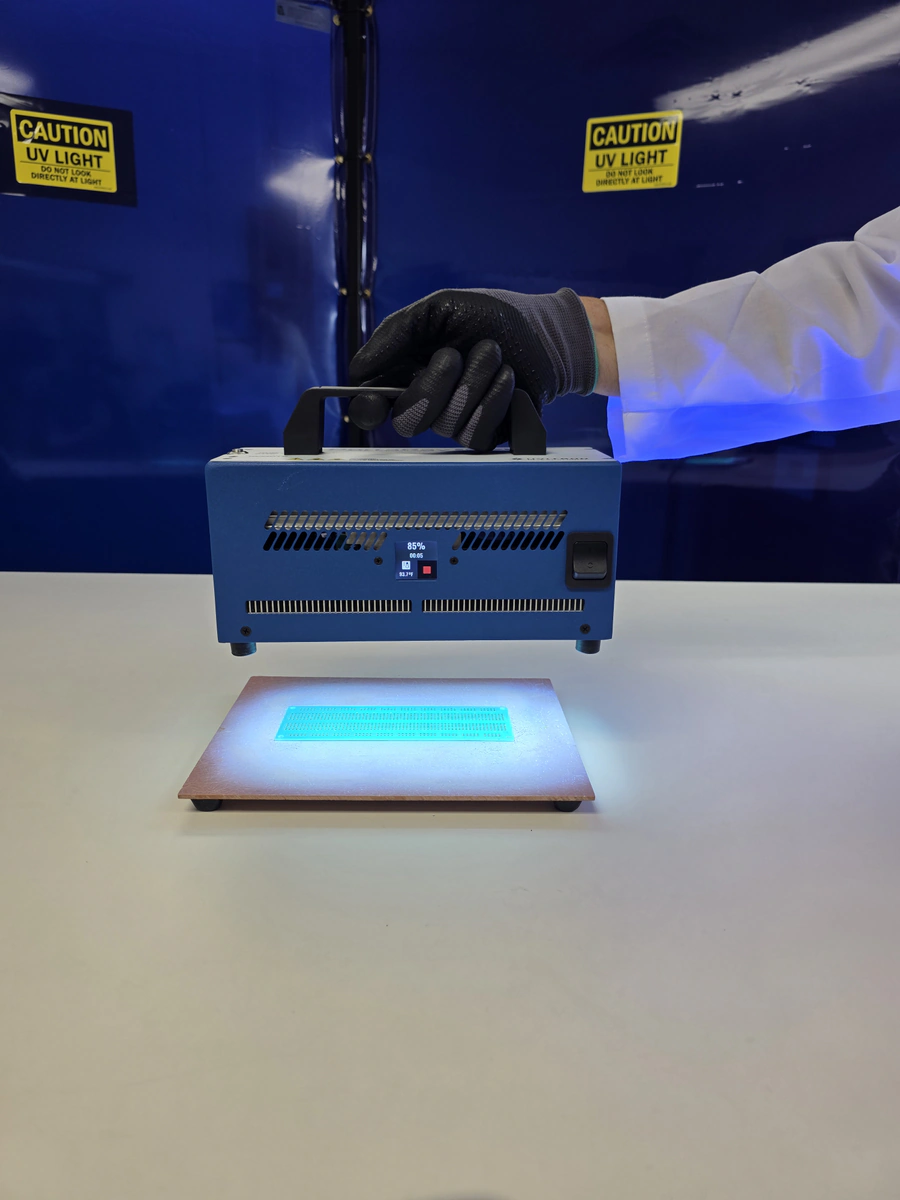

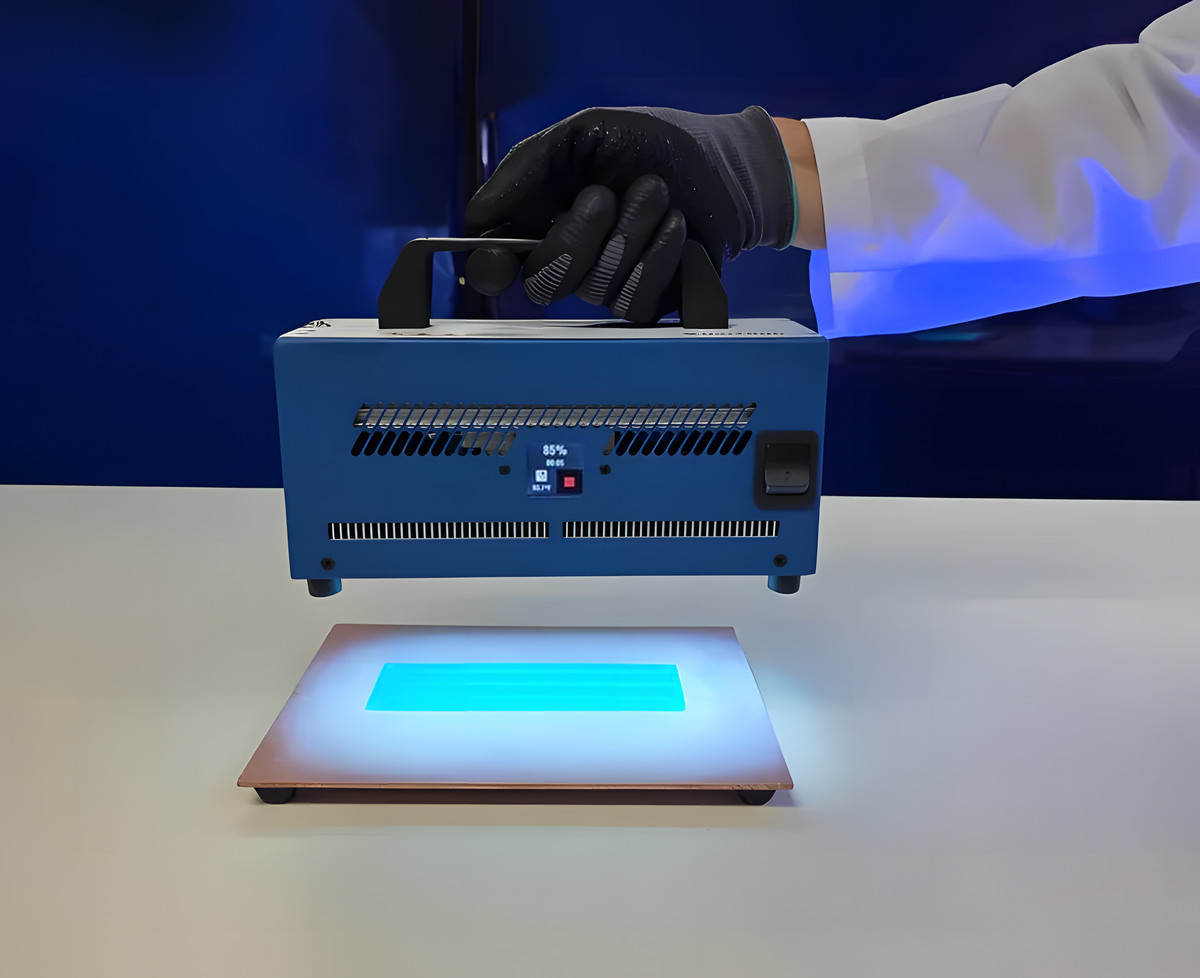

Portable Handheld Format: The compact housing and integrated handle make the system easy to position over workpieces, fixtures, and benchtop process areas. The PortaRay LED provides flood-style coverage without requiring a large stationary curing chamber.
High-Intensity LED Output: The system delivers up to 750 mW/cm2 peak irradiance at 3″, supporting efficient curing across a 3.5 x 7.75″ exposure area. Standard 365 nm and 405 nm versions are available, with 385 nm and 395 nm options available by special order.
No Warm-Up Time: The LED source reaches operating output immediately, allowing operators to begin exposures without lamp warm-up delays. Instant on/off operation also supports cleaner cycle control and reduced unnecessary light output between cure steps.

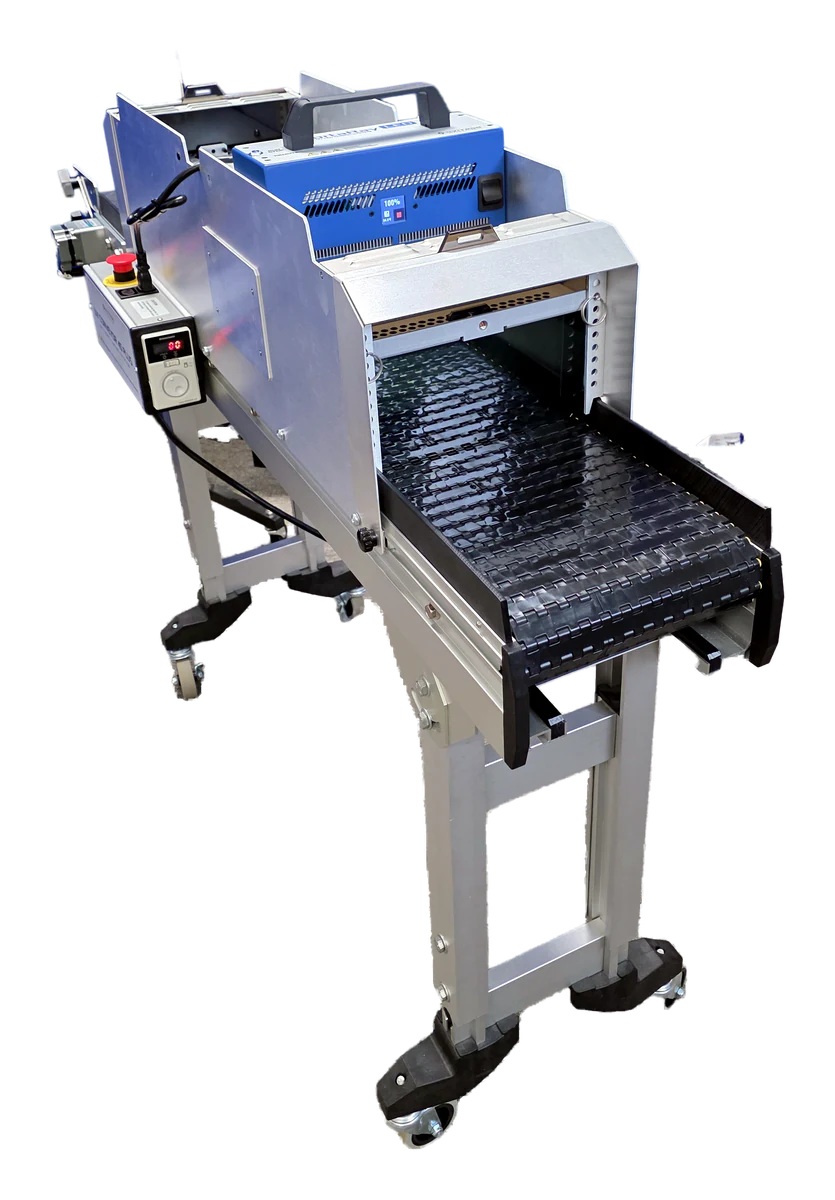

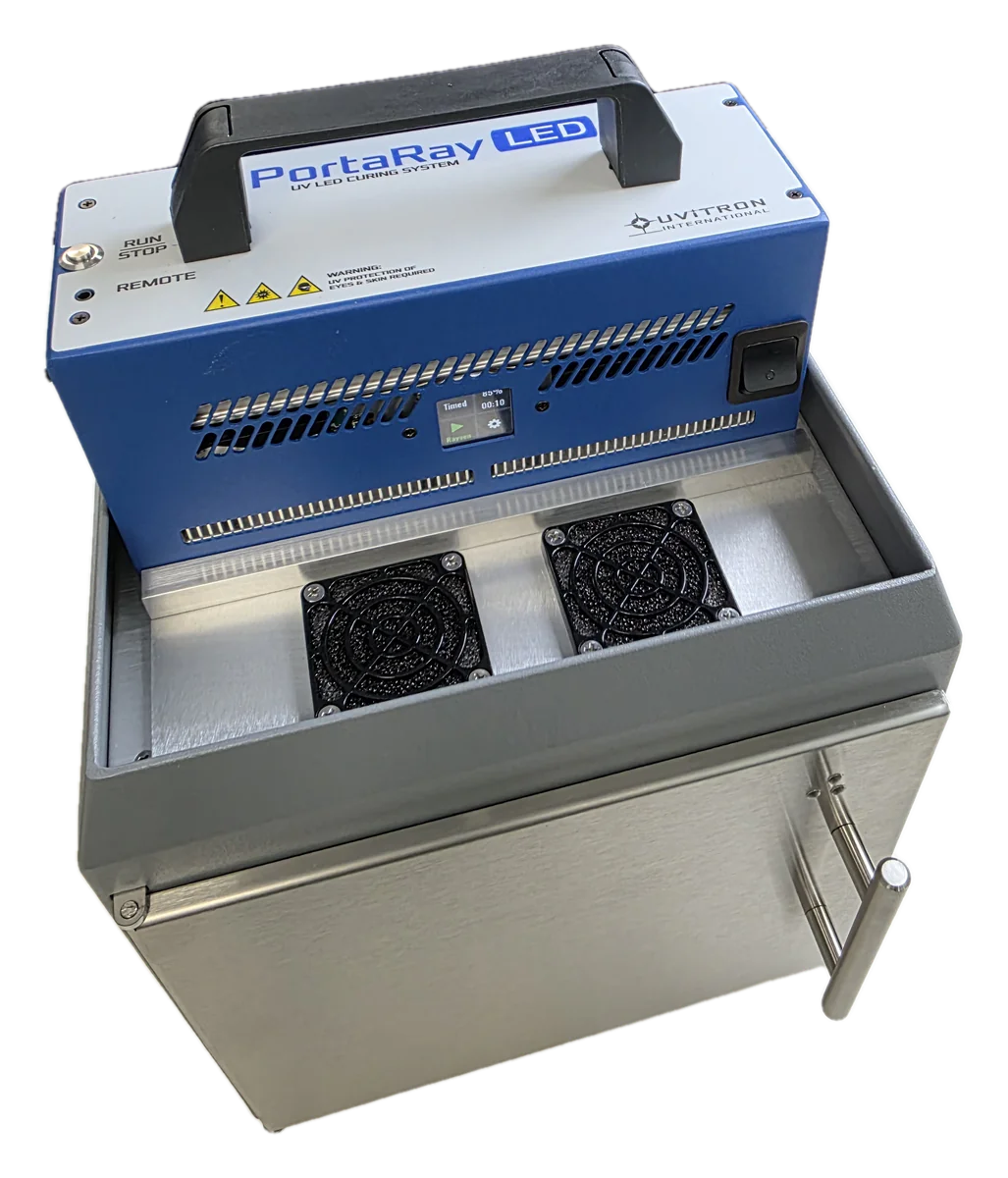

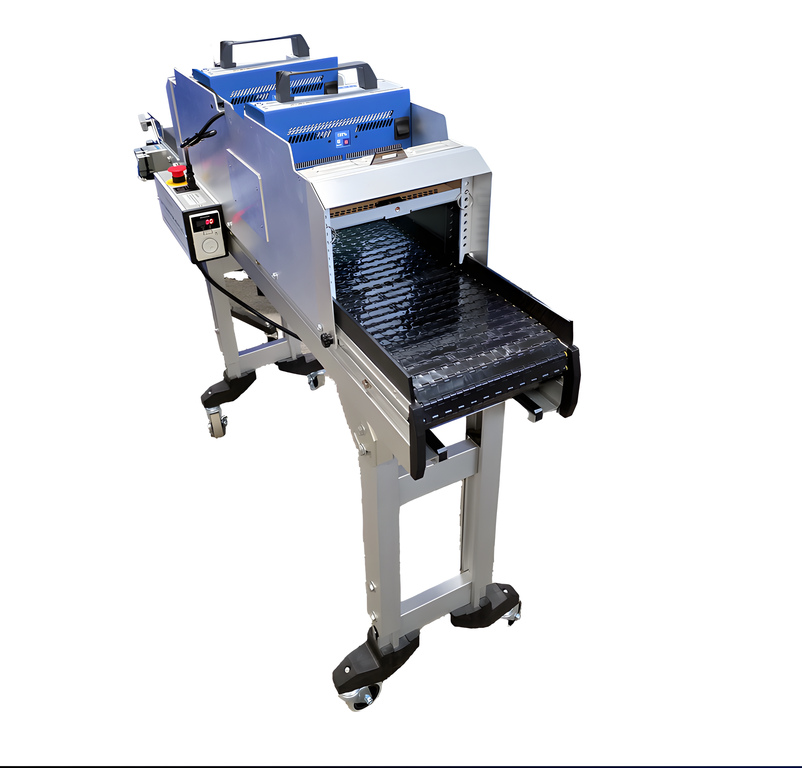

External Control Interface: A top-panel input/output connector supports remote control and monitoring via Modbus RS485 serial communication, analog 0-10 V signals, digital logic signals, and activation via a conveyor photoelectric sensor. This allows the PortaRay LED to be integrated with PLCs, fixtures, conveyors, or other external equipment when the process calls for automated timing and triggering. The PortaRay LED is also compatible with the safety-interlocked Rayven chamber for shielded batch curing.
PortaRay LED System Configurations
| Part # | Item | Details |
|---|---|---|
| UV5440-365 | PortaRay LED Handheld UV LED Curing System | 365 nm LED output, 3.5 x 7.75 in curing area |
| UV5440-385* | PortaRay LED Handheld UV LED Curing System | 385 nm LED output, 3.5 x 7.75 in curing area |
| UV5440-395* | PortaRay LED Handheld UV LED Curing System | 395 nm LED output, 3.5 x 7.75 in curing area |
| UV5440-405 | PortaRay LED Handheld UV LED Curing System | 405 nm LED output, 3.5 x 7.75 in curing area |
*special order
PortaRay LED Dimensions & Specifications
| Specification | Value |
|---|---|
| System type | Handheld UV LED Curing System |
| System part numbers | UV5440-365, UV5440-405 |
| LED electrical power | Approximately 400 W |
| Warm-up time | None |
| Peak irradiance at 3 in | Up to 750 mW/cm² |
| Curing area | 3.5 x 7.75 in |
| LED life | >20,000 hours |
| Input voltage | 90-264 VAC |
| Input current at 120 / 240 V | 6 / 3 A max. |
| Input frequency | 47-63 Hz |
| Current regulation | ±2% to LEDs |
| Cooling | Forced air |
| Over-temperature shutdown | 85 ±5 °C internal |
| Weight | 7.1 lb |
| Size (L x W x H) | 10 x 3.8 x 6.6 in |
PortaRay LED Accessories Part Numbers
| Part # | Item | Details |
|---|---|---|
| Multiple | Power Cords | 2.5 m, 10 A, 125 V |
| UV1080 | Rayven Curing Chamber | Provides full shielding and shutter door interlock |
| UV5842 | PortaRay LED 0-10V Remote Interface Cable | Includes 3.5 mm TRRS remote interface cable. Used to mount to Rayven Curing Chamber or UV Conveyor 40 Plus. |
| UV5908 | PortaRay LED Rayven Remote Interface Cable | 3.5 mm TRRS to DB9 |
| UV5905 | PortaRay LED UV Conveyor 40 Plus Photoelectric Sensor Cable | 3.5 mm to 4-pin |
| UV3383 | USB to 2-Wire RS485 Adapter / Converter | USB adapter for RS485 communication |
| UV5906 | PortaRay LED RS485 Remote Interface Cable | 3.5 mm TRRS to DB9 |
| UV0725 | Foot Pedal, Exposure Time Control | For use with Rayven chamber |
| UV5907 | PortaRay LED Rayven Remote Digital/Pedal Cable | 3.5 mm TRRS to DB9 |
| UV5848 | PortaRay LED 0-10V Remote Interface Cable | 3.5 mm TRRS to flying leads |
| UV5401 | Optical Filter Glass Replacement | Replacement optical filter glass for PortaRay LED |
| UV0495 | UV Safety Glasses, OTG (fit over prescription eyewear) | Fits over prescription eyewear, 3.0 shade |
| UV2231 | UV Safety Glasses, Sport Contour | 3.0 shade |
| UV1889 | UV Protective Lift-Up Face Shield | #4 shade |
| UV3378-X | Rubber Palm Work Gloves | UV light shielding, 1 pair (sizes S, M, L, XL) |
| UV4006-X | LEDCure UV LED Radiometer | 40 W/cm² (365, 385, 395 or 405 nm) |
| UV5359 | PortaRay LED Remote Control Interface | USB flash drive |
