UV LED Systems

Experience the Power of Efficiency with Our UV LED Systems

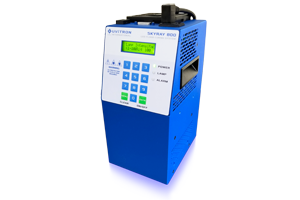

SkyRay

  • Curing area: 5 x 5”
  • Intensity: up to 2,200 mW/cm2 at 1” distance
  • Cool-output long-life UV LEDs available in four spectral types
  • Microprocessor control of time and intensity / remote control and reporting via PC or PLC
  • Integrated UV LED lamp head, power supply and controller
  • Optional shielded benchtop curing chamber
SkyBeam

SkyBeam

  • Curing area: from 3mm to 15mm
  • Intensity: from 900–14,000 mW/cm2
  • Four independent irradiation channels
  • Built-in power supply
  • Long-life flexible light guides, four wavelengths
  • Cool operation
  • Security key switch
SkyRay with Rayven

SkyRay & Rayven

  • Curing area: 5 x 5”
  • Intensity: up to 2,200 mW/cm2 at 1” distance
  • Cool-output long-life UV LEDs available in four spectral types
  • Shielded benchtop curing chamber
  • Adjustable shelf height
UV Conveyor 40 with SkyRays - Dual spectrum capable 800W LED SkyRay systems available for high intensity precision UV applications

SkyRay & UV Conveyor 40 Plus

  • 9″ wide belt, 5″ cure width
  • Intensity: up to 2,200 mW/cm2 at 1″ distance
  • Variable speed, up to 12.4’/min
  • Digital speed display
  • Adjustable lamp height and full UV shielding
  • Dual spectrum lamp capable
  • Benchtop or w/ optional mounting stands
