UV Conveyor 40

Dual lamp curing conveyor system

Expand AllCollapse
UV Conveyor 40 Product Summary
Note: The UV Conveyor 40 is a Legacy Product. It is no longer available for sale; however, we continue to offer support for existing customers and maintain the product pages for reference. We recommend our newer UV Conveyor 40 Plus for new customers.

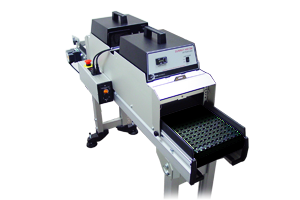

The UV Conveyor 40 is a bench-top or stand-mounted UV light curing conveyor system designed for laboratory or high-volume production applications. The conveyor features a quiet variable speed motor with a velocity regulating drive that keeps the belt speed constant for varying loads.

The system can be configured with single or dual high intensity lamp heads, which can be removed and reconfigured as stand-mounted systems for increased versatility. The belt-to-lamp height can be easily adjusted from 1.5 to 5” for improved compatibility with varying part sizes. The standard conveyor comes with two SunRay lamp heads, and can also be used with our higher power SkyRay LED systems.

Additional Details

Adjustable lamp height and end chute: Foldaway end covers provide quick access to height adjustment pins, which provide perfectly repeatable settings of lamp head to belt distance. An adjustable position end chute guides accumulating cured parts as they exit the conveyor.

Removable lamp heads: The system’s dual lamp heads can be easily removed for bulb replacement and maintenance. They can also be moved quickly from the conveyor to optional low cost shielded mounting stands. This feature allows for offline engineering process testing, and maximum equipment utilization.

Dual spectrum capable: The UV Conveyor 40’s dual lamp heads offer the unique curing advantage of mixing any of its four available lamp spectrum types. For instance, the UV conveyor’s first lamp head can be fitted with a UVA type whose longer wavelengths penetrate more effectively, providing deeper UV curing.  The second lamp can be a UVB lamp for sealing the surface, preventing oxygen from diffusing and causing surface tackiness. This optimizes adhesive reaction speed without the need for an expensive nitrogen purge or the delays of pulse curing.

Full UV shielding: The conveyor light chamber is totally enclosed, shielding the operator and others nearby from any light exposure during the UV curing process. The light chamber entrance and exit are protected by sliding tinted acrylic doors with extended hoods.

Digital speed readout & E-stop switch: A digital rate meter accurately displays the conveyor’s belt speed in feet per minute, allowing for repeatable curing time settings. An emergency stop switch allows quick and safe shutdown of conveyor and lamps.

Exhaust port: The light chamber has a top-mounted 3″ diameter port for optional venting to facility exhaust systems.

Optional mounting stands: The system may be configured with extruded aluminum height adjustable mounting stands. The stands have unique swivel support brackets that allow them to support inclined conveyors, as well as provide angular transitions between continuous conveyors.

Other options: The light chamber can be outfitted with various reflector and lamp spectrum options. Other conveyor lengths are available as special order. Many accessories are also available for configuring the conveyor system into an automated assembly center: Over-belt counter tops, under-belt storage bins, walk-thru gate sections, 90º-turn wheels, end-to-end or end-to-side belt transition plates, product end stops, half stops, guide rails, photoelectric sensors, convenience outlets, remote foot pedals, etc.

Specs & Dimensions
UV Conveyor 40 (Legacy) - Specifications
System Type:Conveyor, variable speed
Part #: UV1052 (120 VAC),
UV0887 (240 VAC)
Input Voltage:100–120 or 200–240 VAC ±10% ranges
Input Current (Max): 20A at 120V, 10A at 240V
Curing Width: 6" exposure width, 9" max part width
Belt Width:9”
Belt Speed: 0.5–12’ / min
Lamp Height, Adjustable: 1.5–5"
Size:54 x 14 x 12”
Weight: 51 lbs.
Lamp Type2 SunRay 400 UVA (arc)2 SunRay 600 UVA (arc)2 SkyRay 800 365nm (LED)
Lamp Power400W600W800W
Irradiance (3” distance)115 mW/cm²175 mW/cm²1000 mW/cm²
Curing Energy (0.5–12’ / min)700–18,000mJ/cm²1,100–26,000mJ/cm²1,000–145,000mJ/cm²
Exposure Time6.65–160 sec. 6.65–160 sec.4.16–100 sec.
Accessories Part Numbers
Part No.ItemDetails
UV0886Conveyor Mounting Stands, Adjustable Height (set of two)Extruded aluminum with swivel support brackets and adjustable leveler pads
(Multiple)Power CordsMultiple types available
UV1450Uvicure Plus II Integrating Radiometer (mid power) UVA, UVB or Visible ranges: 10–1,000mW/cm2, UVC range: 1–100mW/cm2
UV4006-XXXLEDCure UV LED Integrating Radiometer365, 385, 395 or 405nm ranges: 0.4–40W/cm2
UV0495UV/IR Protective Safety GlassesOTG (fit over prescription eyewear), 3.0 shade
UV2231UV/IR Protective Safety GlassesSport contour, 3.0 shade
UV1889UV Protective Face ShieldLift-up face shield ideal for maximum UV/Visible light protection, 4.0 shade
Replacement Parts
Part No.ItemDetails
UV0899Replacement Chain Conveyor BeltHigh temperature polypropylene
UV0320UVA Metal Halide Lamp400W medium pressure
UV0544UVB Enhanced Lamp400W medium pressure
UV0489Visible Metal Halide Lamp400W medium pressure, 420nm
UV0545Visible Metal Halide Lamp400W medium pressure, 460nm
UV0834UVA Metal Halide Lamp600W medium pressure
UV1884UVB Enhanced Lamp600W medium pressure
UV1074Visible Metal Halide Lamp600W medium pressure, 420nm
Lamp Part Numbers
Part No.ItemDetails
UV0446400W SunRay 400 Lamp Head, 120 / 240 VAC, 50 / 60HzIncludes 400W UVA enhanced arc lamp, UV / IR protective glasses, power cord and manual (order 2 per system)
UV0830600W SunRay 600 Lamp Head, 120 / 240 VAC, 50 / 60HzIncludes 600W UVA enhanced arc lamp, UV / IR protective glasses, power cord and manual (order 2 per system)
UV3805 (365nm),
UV3153 (385nm),
UV3937 (395nm),
UV3896 (405nm)
800W SkyRay 800Includes UV / IR protective glasses, power cord and manual. Available with 365nm, 385nm, 395nm or 405nm LEDs. Includes UV / IR protective glasses, power cord and manual (order 2 per system)
System Part Numbers
Part No.ItemDetails
UV1052UV Conveyor 40, 120 VAC 50 / 60 HzBench-top variable speed conveyor (lamp heads and mounting stands sold separately). Includes adjustable end chute, power cord and manual
UV0887UV Conveyor 40, 240 VAC 50 / 60 HzBench-top variable speed conveyor (lamp heads and mounting stands sold separately). Includes adjustable end chute, power cord and manual
