SkyRay

Compact, programmable LED flood curing system

Expand AllCollapse
SkyRay Product Summary

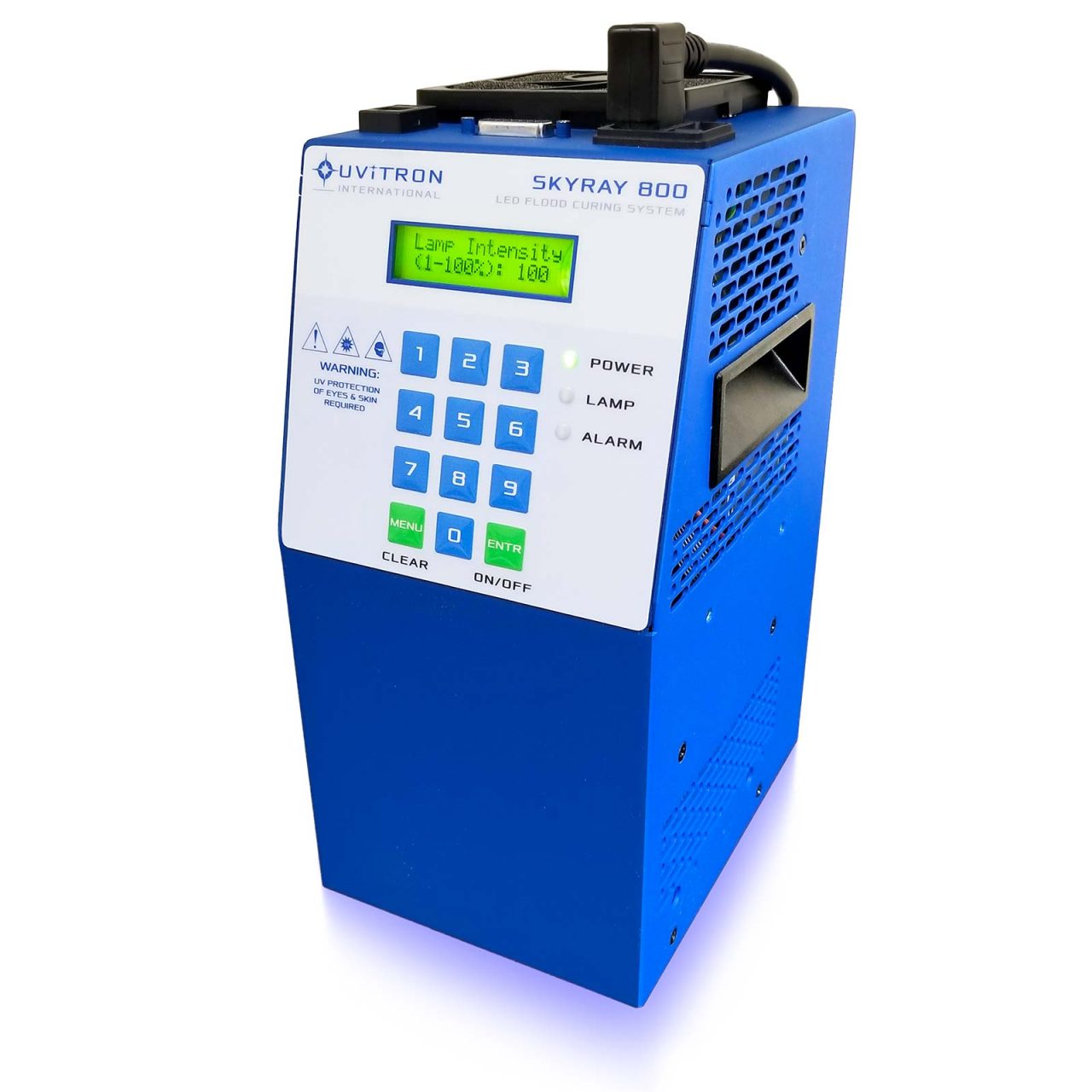

The SkyRay is a compact programmable LED flood curing system that integrates all system components into a small lamp head, which can be easily mounted anywhere on a factory floor with no remote controller, power supply box or remote cooler required. Just mount the head, connect the AC power cord and start timed exposure curing.

The long-life solid-state LEDs illuminate a 5 x 5” curing area with cool and evenly distributed high-intensity light. The system features an integrated exposure timer and adjustable output intensity. The front panel LCD display and sealed membrane-type keypad make programming and monitoring of curing operations a snap.

System dose and setup parameters feature password protection to prevent unauthorized changes to sensitive processes and control settings. The unit features a variable-speed cooling fan and convenient flush-mounted carrying handles. The enclosure’s slim design allows for side-by-side mounting of multiple units for exposure of larger curing areas.

Additional Details

System timers: Duration of curing is controlled by a 1–9999 second timer that turns off the LEDs and beeps after exposure is complete. The timer can alternatively be switched to a 1–9999 hour mode for use in artificial aging or other long exposure applications. The exposure timer can also be set to a user-controlled manual mode in which exposure time increments on the display indicate the elapsed time of a cure.

Lamp intensity control: The system has a user-adjustable 10–100% intensity level. This feature provides the flexibility of choosing appropriate curing intensity for sensitive materials.

Status indicators and alarms: Three front panel LEDs are provided: AC power-on / door open, lamp LEDs on and system alarm. The SkyRay also monitors all internal sub-systems and environmental conditions, and displays system status, internal temperature levels and alarm conditions on the LCD display.

External logic signal interface: The system can be remotely monitored and controlled using isolated logic signals available at a 15-pin D-sub connector on the unit’s top panel. The digital logic functions allow high-speed control of the SkyRay for applications requiring a direct interface with machine controllers or PLCs. Control signals include LEDs on / off, 0–10V LEDs intensity, and a safety interlock that disables LEDs. Monitoring signals include LEDs lit, chamber temperature and system alarm.

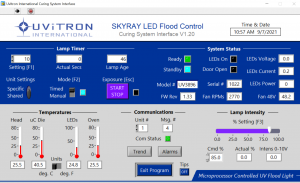

Remote Control via PC serial port: The system can also be remotely controlled via USB or RS485 serial ports. A Windows™ compatible graphical interface program allows all system functions to be exercised, and with RS485, multiple units can be networked.

Lamp power regulation: The system’s switch mode power supply maintains constant lamp power regardless of variations in AC line input or LED voltages, resulting in consistent and repeatable curing times.

Universal wide-range AC line input: The auto-ranging 100–240VAC 50 / 60Hz power factor corrected AC input makes the SkyRay easy to use in any country, with no wiring changes or voltage select switching required.

Forced air cooling: A baffled variable speed fan cooling system with removable filter channels cooling air appropriately to all components to ensure high system reliability.

Accessories & Options

Foot pedal control: An optional exposure control foot pedal is available for applications requiring hands-free operation. The pedal can be used in conjunction with the system’s exposure timer or in a manual mode in which the lamp LEDs remain on as long as the pedal is pressed.

Optional LED spectrums: The SkyRay is available with 365nm, 385nm, 395nm and 405nm LEDs at 1400 mW/cm2, which ensures compatibility with many types of adhesives and coatings from all manufacturers.

Dimensions & Specifications
Specifications
System TypeLED Flood Curing System
Lamp Power800W
Input Voltage100–120 / 200–240 VAC ±10% (auto-ranging)
Input Current (Max)13.0/6.5 Amps
Curing Area5 x 5"
Weight11.25 lbs.

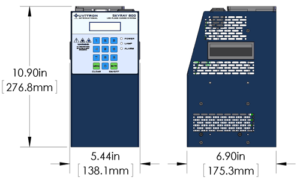

Size (L x W x H)6.90 x 5.44 x 10.90”
SkyRay Accessories Part Numbers
Part No.ItemDetails

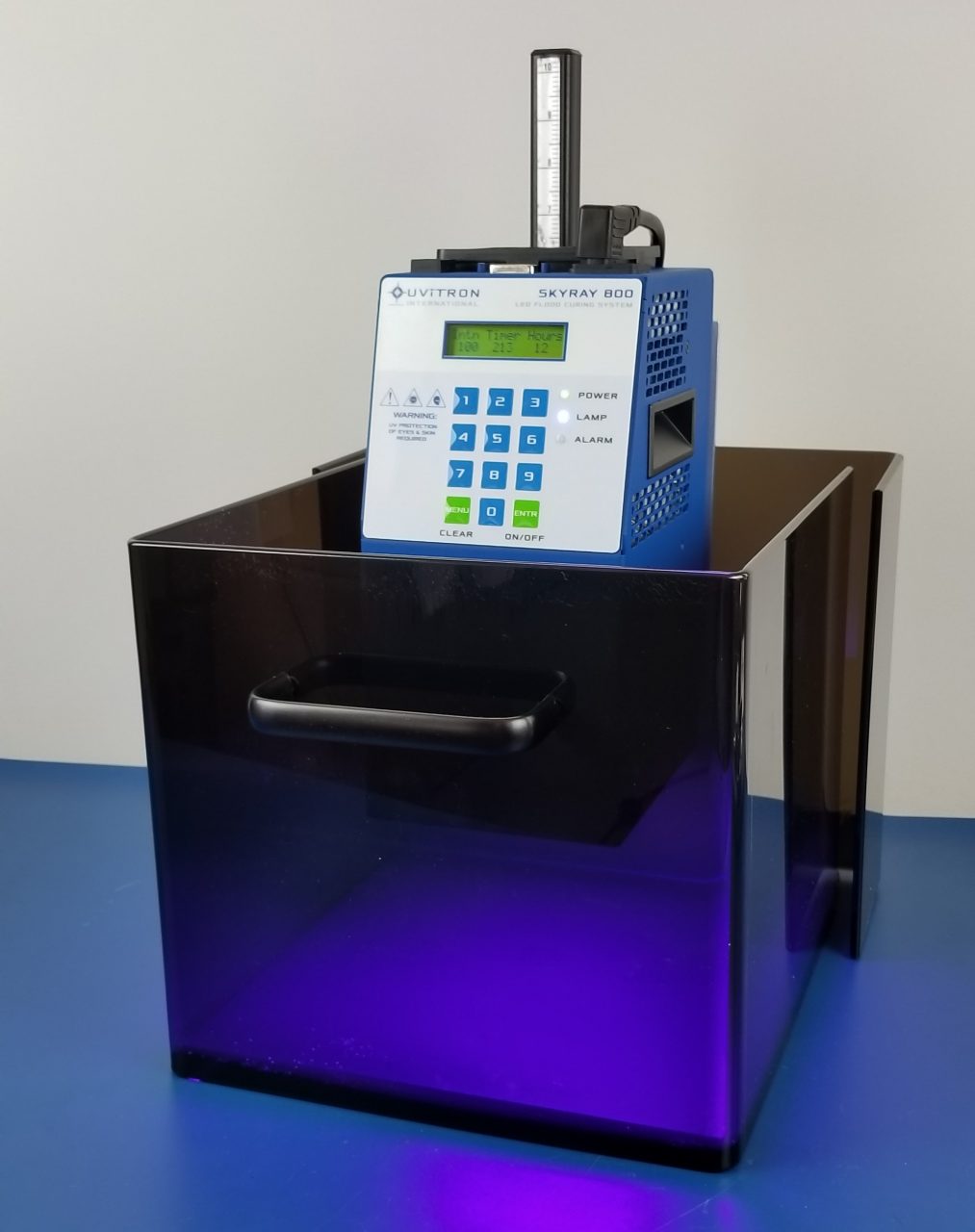

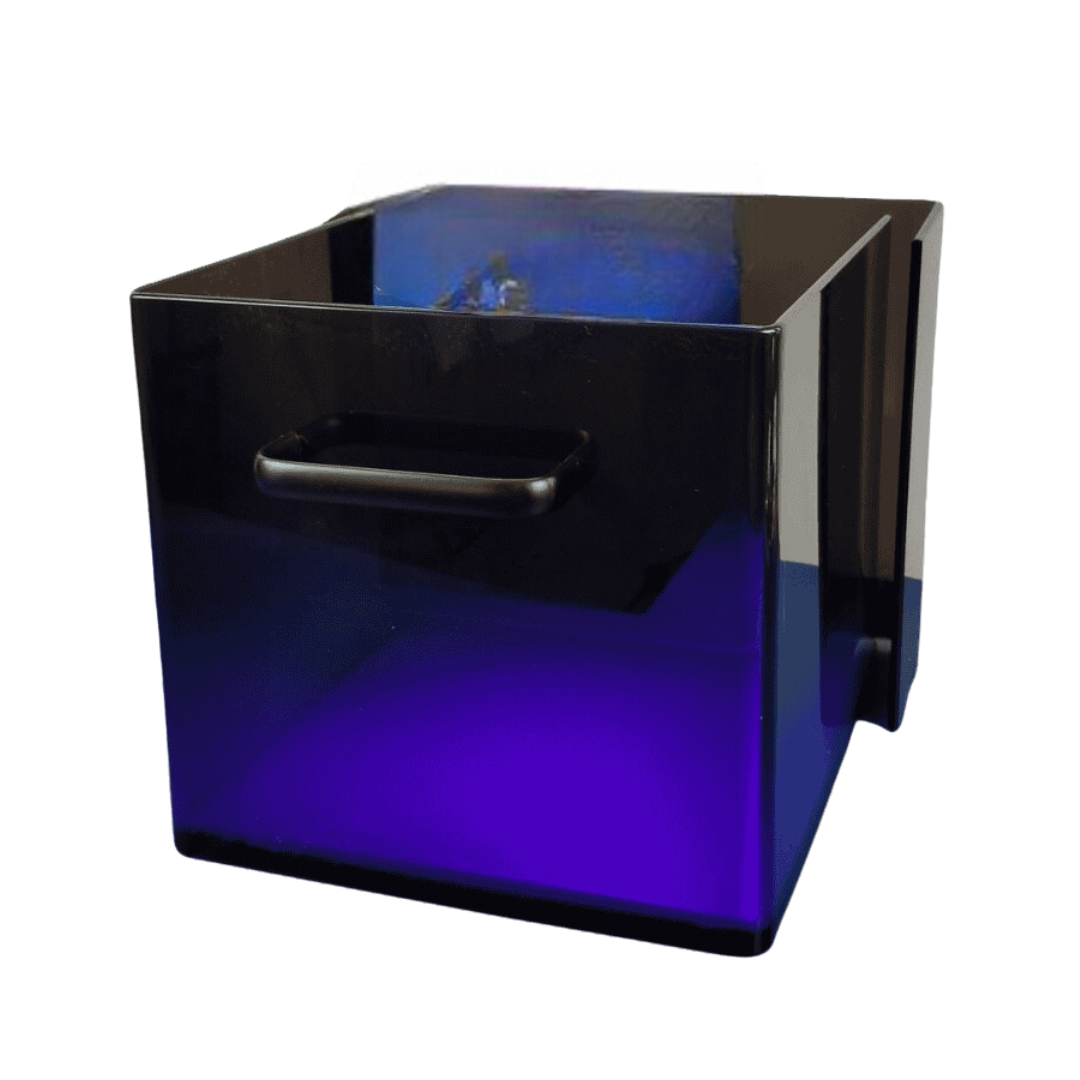

UV1080Rayven Shielded Curing ChamberProvides full shielding and shutter door interlock

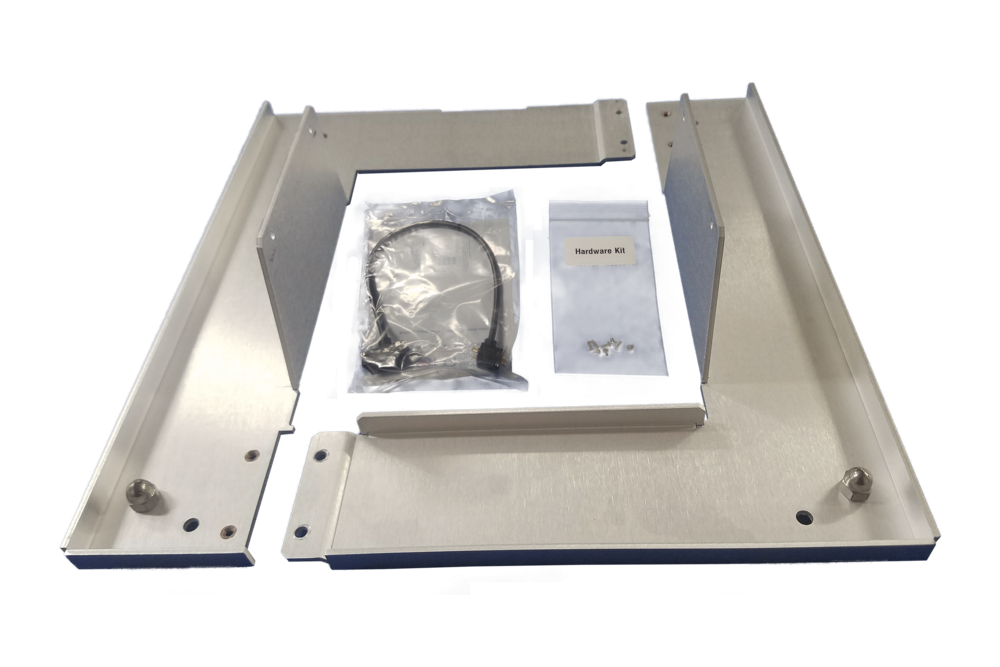

UV3699SkyRay Mounting Bracket Assyw/ fasteners & right angle DB15 interconnect cable (used to mount to Rayven curing chamber).
UV3164LED Filter GlassReplacement Filter Glass For SkyRay 800
UV0725LEDs Control Foot PedalProvides hands-free control of shutter and exposure timing
UV3904SkyRay Remote Control Interface Software CD ROMWindows 98 / 2000 / XP / Win7 / Win8 / Win10 GUI
UV3902Right Angle USB cable2.0 meter, black
UV3383USB to 2-Wire RS485 Adapter / ConverterConnect PC to RS485, used with UV3924
UV3924RS485 Remote Interface Cable, DB15 to DB9Connect multiple units together, used with UV3383
UV0526RS485/Logic Remote Interface CableControl from RS485, PC or digital logic
(Multiple)Power cordsMultiple types available
(Multiple)UV Curing TrayStainless steel non-stick surface
UV1450LEDCure RadiometerUVA or Visible ranges, 10-10,000mW/cm2
UV02231UV/IR Protective Safety GlassesSport contour, 3.0 shade
UV0495UV/IR Protective Safety GlassesOTG (fit over prescription eyewear), 3.0 shade
UV01889UV Protective Face Shield Lift-up face shield ideal for maximum UV/Visible light protection, 4.0 shade
