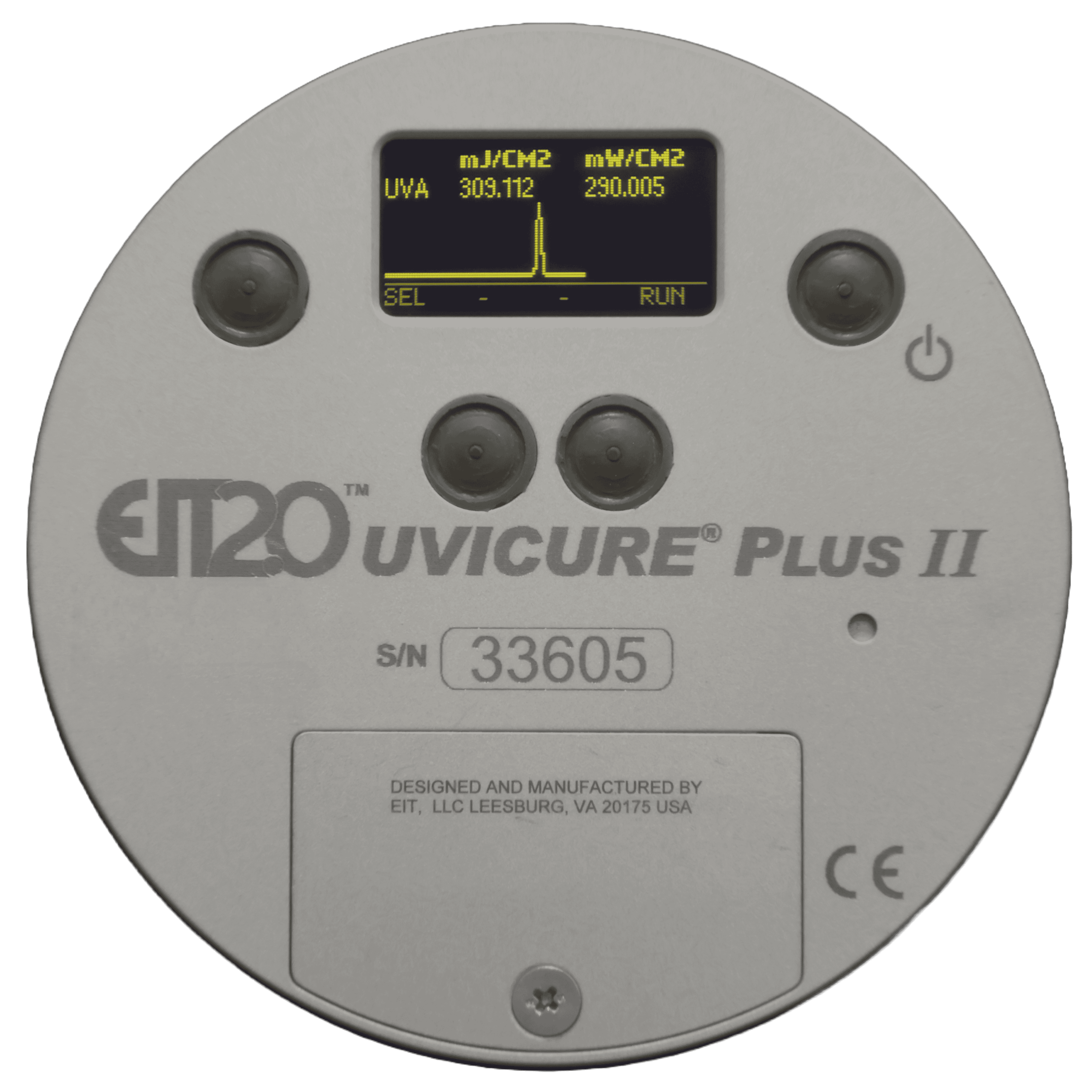

UVICure Plus II Radiometer

$1,648.00

Clear
Part #: UV1450 Categories: ,

Description

Up to 10W/cm² in UVA, UVB, UVC or Visible – Single Channel Radiometer (more…)

  • Used in curing applications of inks, adhesives, solder masks, and epoxies (not for use in web press applications)
  • Incorporates one UV spectral response range
  • Display provides readout of total UV dosage in Joules/cm2 and peak UV intensity in Watts/cm2
  • Measures UV lamp performance
  • Compares the efficiencies of different UV curing systems
  • Includes carrying case

Operating Ranges:

High Power:

  • UVA, UVB, UVV: 100-10000 mW/cm²
  • UVC: 10-1000 mW/cm²

Mid Power:

  • UVA, UVB, UVV: 10-1000 mW/cm²
  • UVC: 1-100 mW/cm²

Low Power:

  • UVA, UVB, UVC, UVV: 1-100 mW/cm²



Additional information

Weight 3 lbs
Dimensions 12 × 12 × 5 in
Operating Range:

1-100 mW/cm2, 10-1000 mW/cm2, 100-10000 mW/cm2

Spectral Range

250-260 nm (UVC), 280-320 nm (UVB), 320-390 nm (UVA), 395-445 nm (Visible)

Lead Time:

Lead Time: 10-14 days to allow for calibration before shipment (does not include transit time). This item is special order and thus is non-cancelable and non-returnable.
