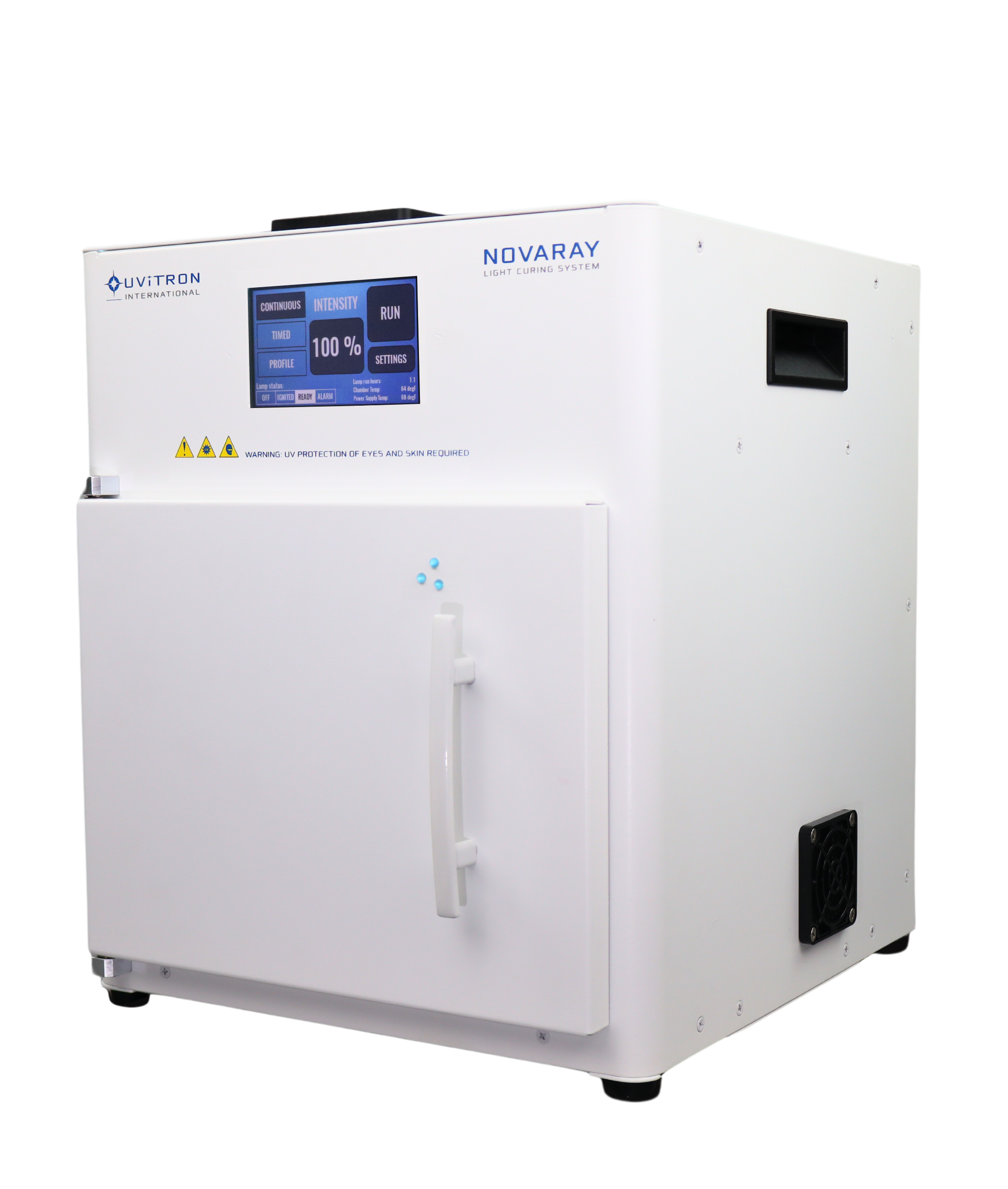

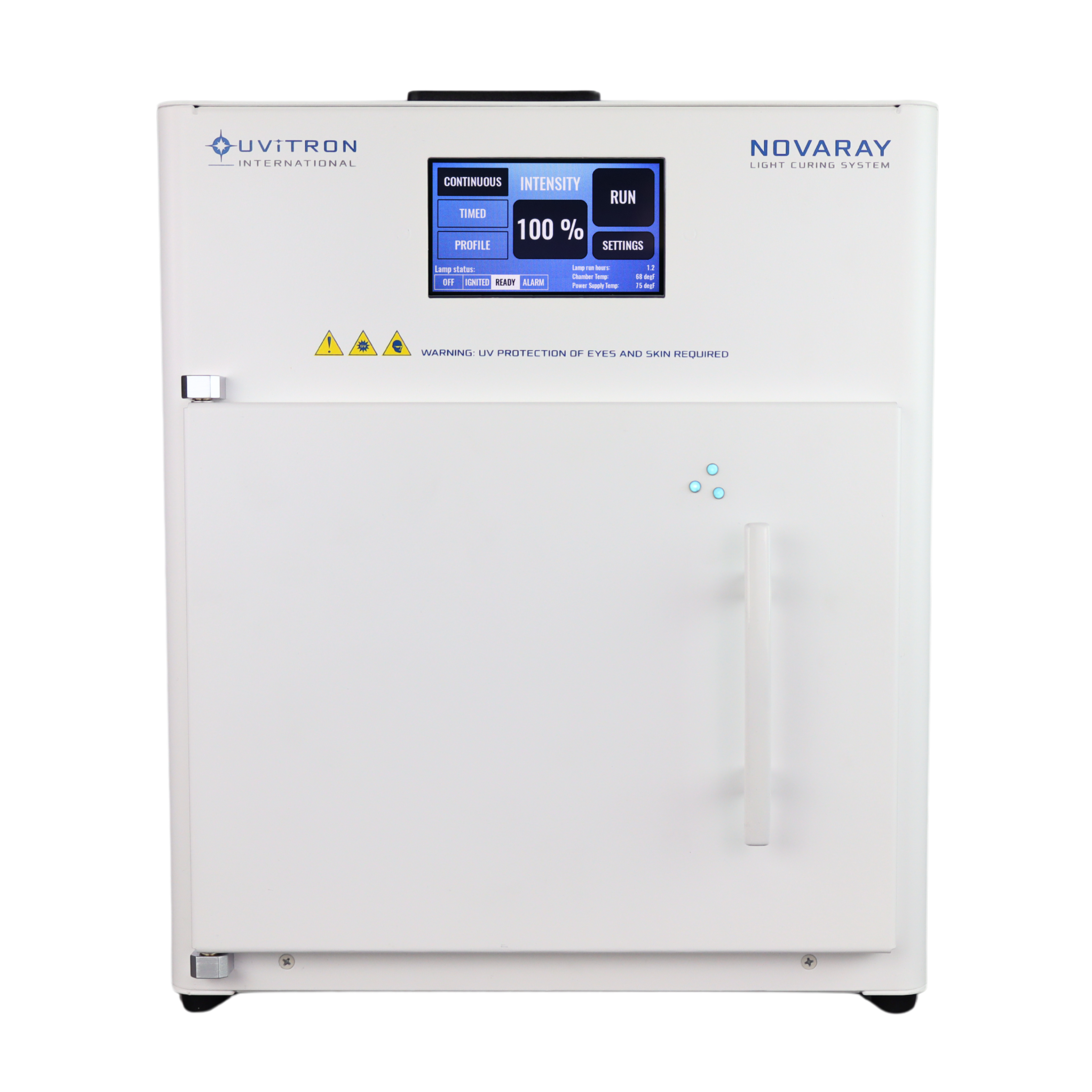

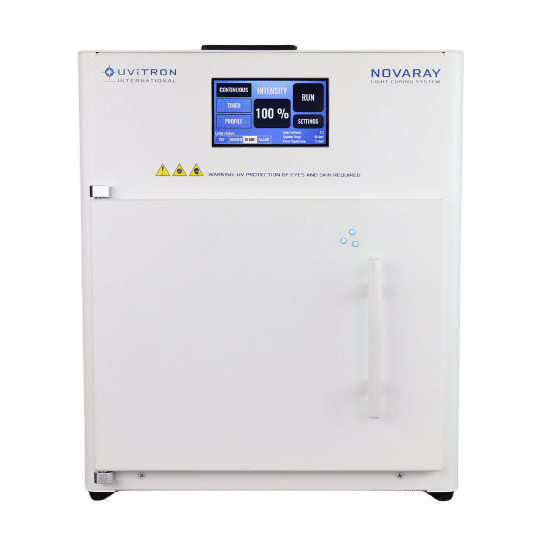

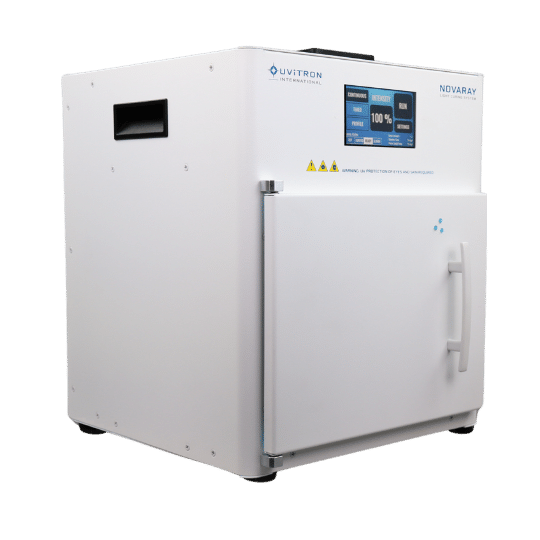

NovaRay

Fully-Integrated UV Flood System

Expand AllCollapse
NovaRay Product Summary

The NovaRay system is a fully-integrated, state-of-the-art UV flood curing solution, equipped with a high-intensity 600W UV lamp for efficient and uniform post-curing. Designed for versatility, it caters to a broad range of materials, including delicate 3D printed resins, through a sizable curing chamber that enhances throughput by accommodating multiple parts at once.

At its core, precision controls enabled by an advanced touch screen interface and a microprocessor allow for exact curing parameters, essential for materials requiring specific conditions. The system’s cooler chamber temperature feature ensures material integrity is maintained, crucial for sensitive applications.

Customizable intensity profiles offer adaptability to various curing needs, emphasizing the system’s flexibility. Modern connectivity options, such as USB, Ethernet, and RS-485, alongside comprehensive data logging, ensure seamless integration into existing workflows and facilitate quality control and process monitoring.

Additional Details

Customizable Intensity Profiles: The NovaRay system features customizable intensity profiles, allowing users to adjust the curing process to match specific material requirements. This capability ensures optimal curing conditions for a variety of materials, from delicate 3D printed resins to robust composites, enhancing the system’s utility across diverse applications.

Connectivity and Data Logging: Equipped with USB, Ethernet, and RS-485 interfaces, the NovaRay integrates smoothly into existing manufacturing and quality control workflows. Its comprehensive data logging capabilities support detailed monitoring of curing parameters, essential for ensuring process consistency, traceability, and repeatability.

Precision Controls with Touch Screen Interface: Features a high-resolution touch screen, paired with a microprocessor for precise control over curing parameters. This system allows for the adjustment of exposure times, intensity settings, and other critical variables.

Expansive Curing Chamber: Features a large curing chamber designed to accommodate simultaneous curing of multiple components. This design element is pivotal for enhancing throughput and operational efficiency in batch processing environments. The chamber’s dimensions are optimized to maximize exposure uniformity, ensuring consistent curing across all parts.

Cooler Chamber Temperature: Incorporates a cooling mechanism within its curing chamber to prevent overheating and ensure the integrity of temperature-sensitive materials. This feature is essential for maintaining the mechanical and aesthetic properties of cured components, particularly those susceptible to heat-induced deformation or degradation.

Dimensions & Specs
NovaRay Dimensions & Specs
System Type:Fully-Integrated Flood Curing System
Part#:UV4777
Lamp Power:600W
Input Voltage:90–265VAC, wide-range AC line input
Input Current (Max @ 120/240V):10A max (120V range), 5A max (240V range)
Peak Irradiance, Typical at 2.5" (Initial):140 mW/cm2 UVA, from bottom face of lamp head
Curing Area:8 x 6" minimum
Weight:20.0 lbs
Size (L x W x H):15.5” x 13.2” x 13.7”
System Configurations
Part No.Details
UV4777Includes 600W UVA enhanced arc lamp, UV/IR protective glasses, power cord and manual
Accessories Part Numbers
Part NoItemDetails
UV2128Flood Filter GlassReplacement filter glass. Filters shortwave and infrared wavelengths
UV2676Dichroic Flood Filter GlassOptional dichroic filter glass for SunRay and IntelliRay floods.
UV0725Shutter Control Foot PedalProvides hands-free control of shutter and exposure timing
???Remote Control Interface SoftwareWindows 98/00/XP/7/8/10/11 GUI (firmware dependent)
UV0525RS232 Remote Interface CableFor use with above software
UV0526RS485/Logic Remote Interface CableControl from RS485 PC or digital logic
MultiplePower CordsMultiple types available
MultipleUV Curing TrayStainless steel non-stick surface

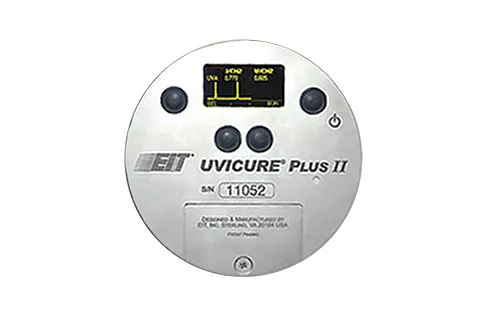

UV1450-XXUvicure Plus II Integrating RadiometerUVA, UVB, UVC or Visible spectral ranges (available in multiple ranges)

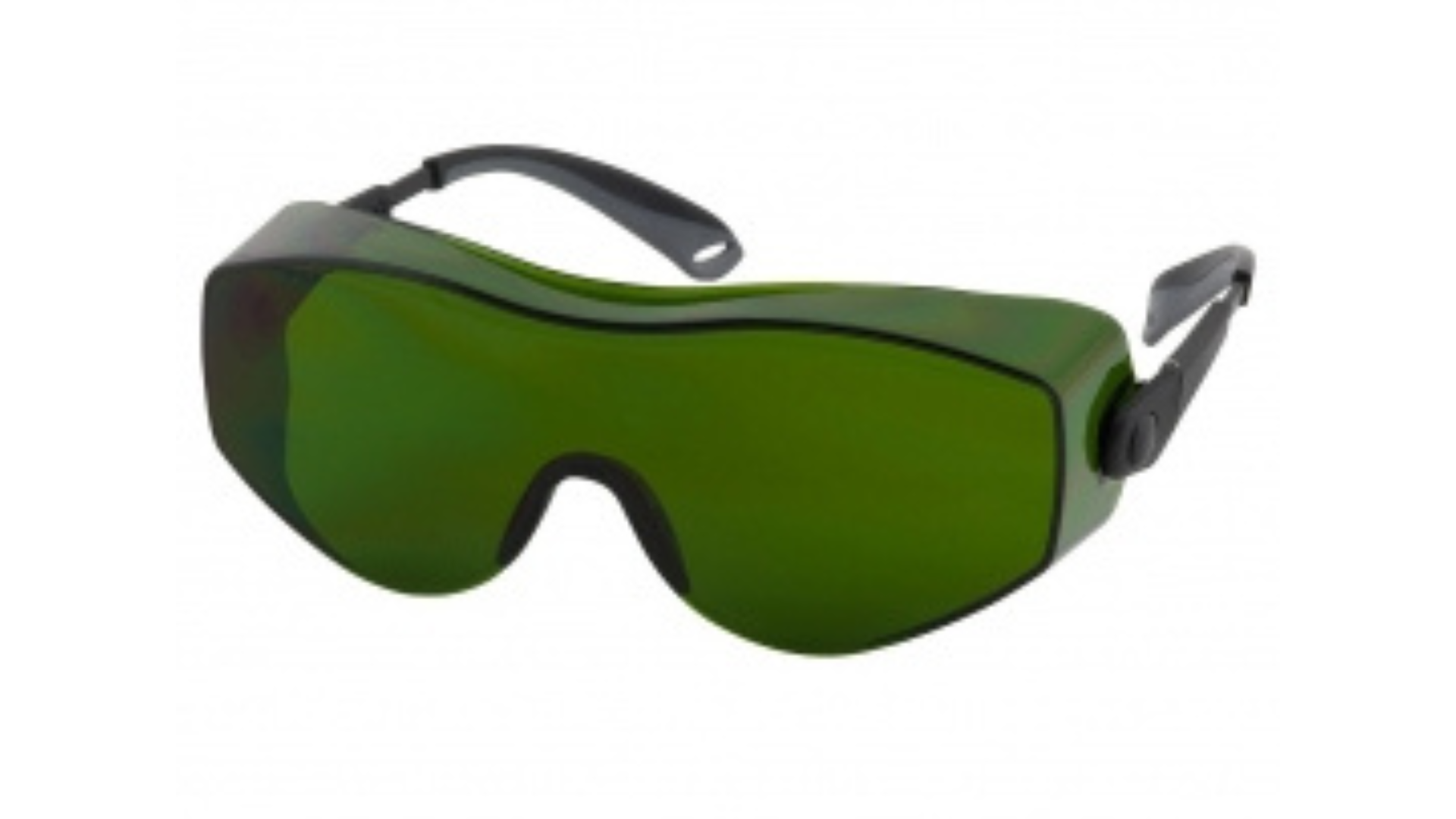

UV0495UV/IR Protective Safety GlassesOTG (fit over prescription eyewear), 3.0 shade
UV2231UV/IR Protective Safety GlassesSport contour, 3.0 shade
UV1889UV Protective Face ShieldLift-up face shield ideal for maximum UV/Visible protection, 3.0 shade
???NovaRay Instruction ManualUsage and maintenance info for IntelliRay 200 System
Payment Information

Purchase Orders

To open a new customer account with us, please send the following information regarding your company:

  • Company name
  • Company contact
  • “Bill To” address
  • Telephone and fax numbers
  • Three trade references

Please be sure to include the following information on your purchase requests to ensure quick and accurate processing and shipment of your order:

  • Complete “Ship To” address, including postal code where applicable
  • Required shipping method

Unless otherwise specified, all shipments will be sent via UPS.

New Customer Form | Credit Application



Fax & Email Orders

To place an order, send your signed purchase order and company information (see above) to the attention of our Sales Department by fax at 413.731.7767 or by email to [email protected].



Phone Orders (U.S. Customers Only)

We are happy to process your product orders by phone at 413.579.6406. We accept MasterCard, Visa, Discover and American Express for phone order payments (see Credit Card Order information).



Credit Card Orders

credit-cards

In order for us to accurately and safely process your credit card orders, we request that you supply us with complete account, cardholder and shipping information. Please complete the following form and send it to us via email or fax, or be prepared to supply the information over the phone to one of our customer service representatives.

Credit Card Order Form



International Orders

We have extensive experience processing and fulfilling international as well as domestic orders. We have successfully shipped products to destinations around the globe.

To contact us from outside the United States, call 00.1.413.579.6406 or send us an email message at [email protected]

For first-time international orders, prepayment is required. Payments may be made by certified bank check or direct wiring of funds (this information must be provided at time of order).



Financing

We offer financing through CrestCapital. Learn more about financing the purchase of equipment by clicking here for instant payment quotes and/or to apply online.



Shopping Online

uvitron shopping

To order UV curing accessories online, visit our online store. We offer a variety of lamps, radiometers, light guides and other accessories for our flood and spot curing systems.



Return Policy

All product returns must be first authorized by our Customer Service department. A Uvitron service representative will issue a Return Material Authorization Number, which must be printed clearly on the top of the shipping carton and on the accompanying packing slip. Any unauthorized returns will be refused by our Receiving Department, so please call us first.

Returned products or demonstration units must be received in new condition, with no damage, dents, scratches or adhesive stains. Products should also be sent in the original packaging and shipping cartons to ensure proper protection during return transit. Some items may be subject to restocking fees. Account credits or refunds will be issued after returned equipment is received and inspected. Unfortunately, we cannot accept custom or non-stocked items returned for credit or refund.

To speak with a customer service representative, call 413.579.6406 or email [email protected].

Product Files

NovaRay

Request Quote for NovaRay

Request a quote for the version of the NovaRay flood system that best fits your needs.

Below you can choose from the different available models, components and accessories for this system. You can select each item one at a time or begin with the Default Configuration as a basis, and build from there.

If you have any questions, contact us directly.

Quote Default Configuration
Remove System from Quote
UV4777 - NovaRayArcLamp-1,NovaRayLampTypes-1
UV4777-NL - NovaRayArcLamp-1,NovaRayLampTypes-2
UV4777-NL - NovaRayArcLamp-1,NovaRayLampTypes-3

System Type and Included Items

All NovaRay system components are integrated into one unit available in 200W, 400W or 600W arc lamp options. The default NovaRay configuration comes with Flood Filter Glass, UVA enhanced arc lamp, UV/IR protective OTG glasses (3.0 shade with case), AC power cord (USA standard) and IntelliRay Manual.

NovaRay 600 Base System - UV4777-NL

High power 600W arc lamp, best for applications requiring maximum intensity for fast curing.

Choose Lamp Type

The NovaRay is available with UVA, UVB & visible spectrum lamps, ensuring compatibility with adhesives and coatings from all manufacturers.

600W UVA lamp - UV0834

600W UVA enhanced arc lamp for NovaRay system

600W UVB lamp - UV1884

600W UVB enhanced arc lamp with shortwave output for NovaRay system

600W Visible (420nm) lamp - UV1074

600W Visible enhanced arc lamp (420nm peak) for NovaRay system
