Light-shielding UV curing chamber

Expand AllCollapse
Rayven Product Summary

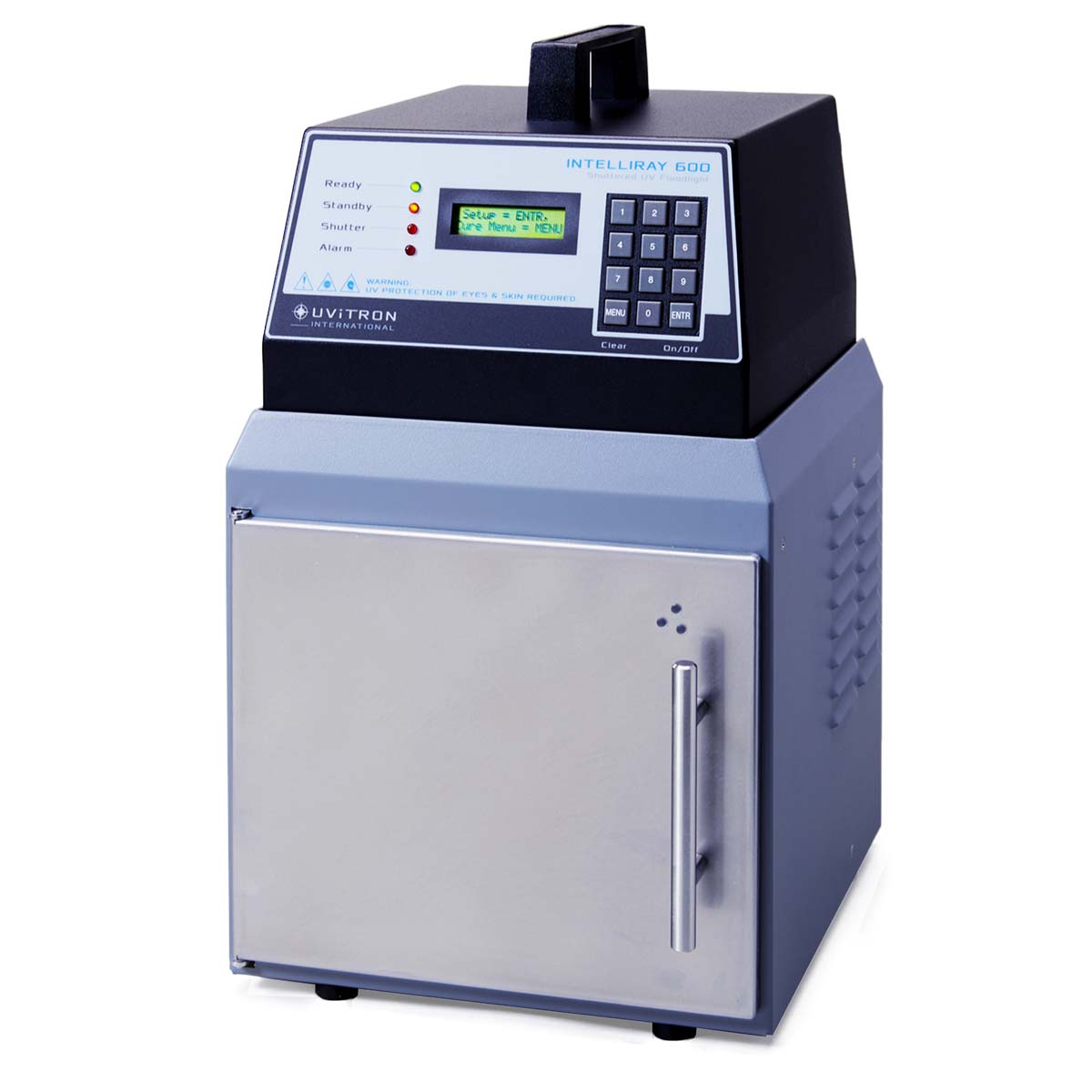

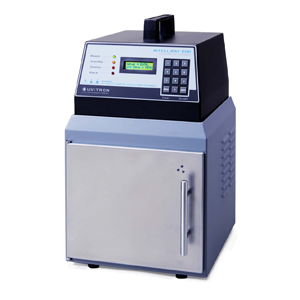

The Rayven is a light-shielding UV curing station for the IntelliRaySunRay and SkyRay curing systems. This fully enclosed curing chamber provides 360º light-shielding ensuring maximum UV protection.

The Rayven features a door-mounted lamp-on indicator and an adjustable-height curing tray that allows for five repeatable curing distances. Just place your IntelliRay, SunRay or SkyRay on top of the oven and start curing—no tools required!

For a larger version of this system, see the Rayven Quad.

Additional Details

Door interlock: The Rayven includes a door interlock that, when used with the IntelliRay system, automatically causes the unit’s shutter to close when the door is opened. When used with the SkyRay system, the LEDs automatically turn off when the door is opened.

External control interface: Dual rear panel D-sub connectors allow pass-through of IntelliRay, SunRay and SkyRay control signals for use with a PC, PLC, shutter control foot pedal, external interlock, etc.

Dimensions & Specs
Specifications
Part #UV1080
CoolingForced air w/ louvers, channeled from lamp head
Interconnect CableDual 15 position D-sub (Male/Female, 1.25'), included
Dimensions (H x W x D)
Inside9 x 9 x 10.4”w/ adjustable shelf
Outside11.8 x 11.6 x 12.1”D = 13.3 w/ door handle
Weight (lbs)9 lbs.w/out lamp head
Cure Distance (IntelliRay / SunRay)
Shelf Positions1.75”, 3.5”, 5.25”, 7.0”Bottom of lamp to shelf
Distance to Floor9”Bottom of lamp to floor
Cure Distance (SkyRay)
Shelf Positions.75", 2.5", and 4.25"Bottom of lamp to shelf
Distance to Floor6.250”Bottom of lamp to floor
Rayven

Request Quote for Rayven Chamber

Request a quote for the version of the Rayven flood curing chamber that best fits your needs.

Below you can choose from the different available models, components and accessories for this system. You can select each item one at a time or begin with the Default Configuration as a basis, and build from there.

If you have any questions contact us directly.

Quote Default Configuration
Remove System from Quote
UV1080 - Rayven-1,SystemOptions-1
UV1080 - Rayven-1,SystemOptions-2
UV1080 - Rayven-1,SystemOptions-3
UV1080 - Rayven-1,SystemOptions-4
UV1080 - Rayven-1,SystemOptions-5
UV1080 - Rayven-1

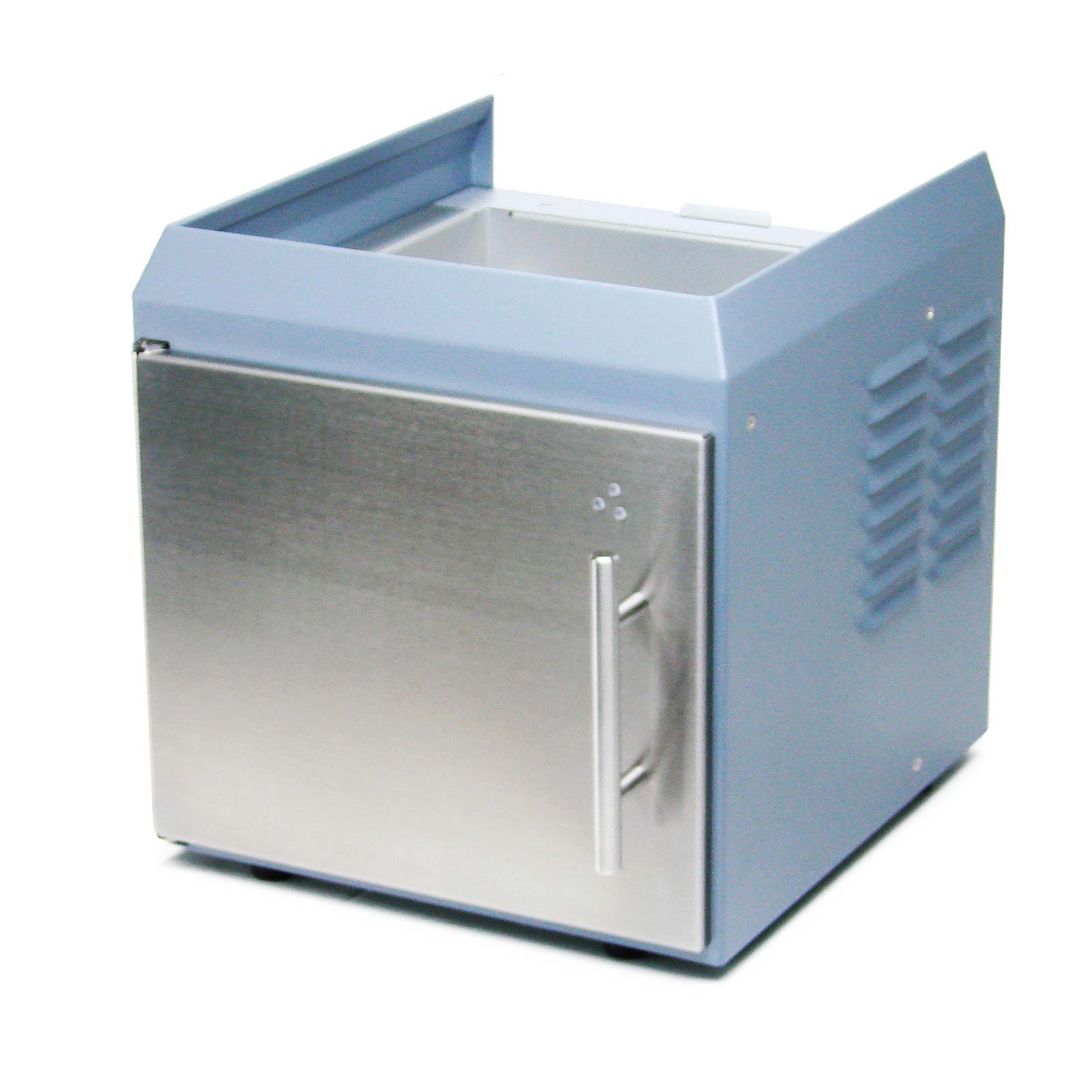

Rayven Curing Chamber

The Rayven light shielding curing chamber also includes: adjustable height shelf, male to female 15 position DSUB lamp head interconnect cable and Rayven chamber instruction sheet.

Rayven

UV shielded curing chamber for IntelliRay, SunRay & SkyRay flood systems

System Options

Choose a UV flood curing lamp system to mount on the Rayven chamber

IntelliRay 400 - UV0338

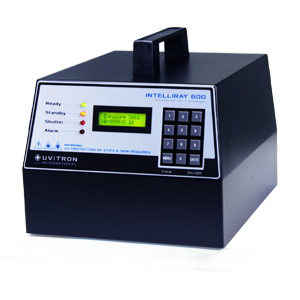

400W microprocessor-controlled shuttered flood curing system (UVA arc lamp included).

IntelliRay 600 - UV0832

Higher power 600W microprocessor-controlled shuttered flood curing system (UVA arc lamp included).

SunRay 400 - V0446

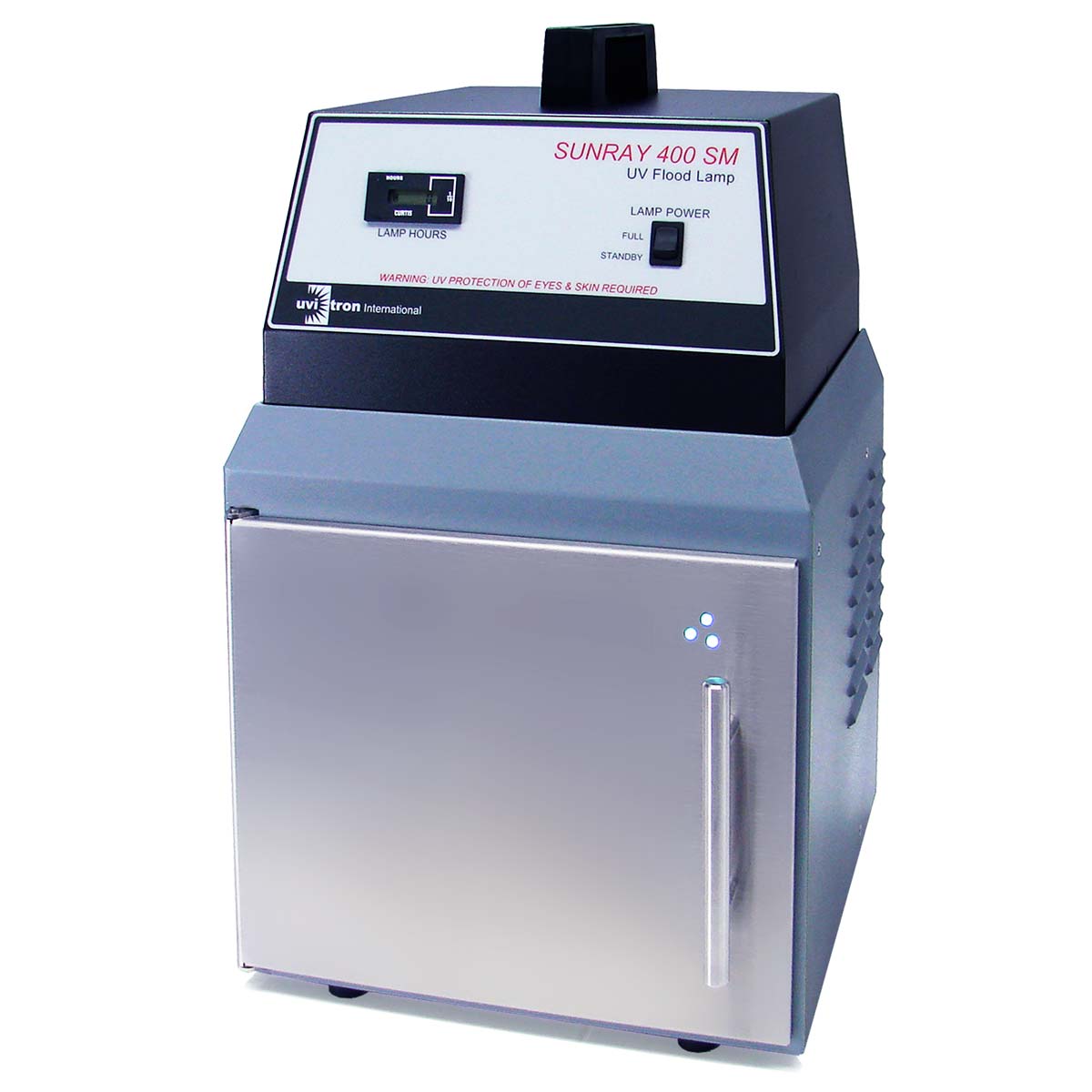

400W economical flood curing system (UVA arc lamp included).

SunRay 600 - UV0830

600W economical flood curing system (UVA arc lamp included).

SkyRay 800 - UV3805 & UV3699

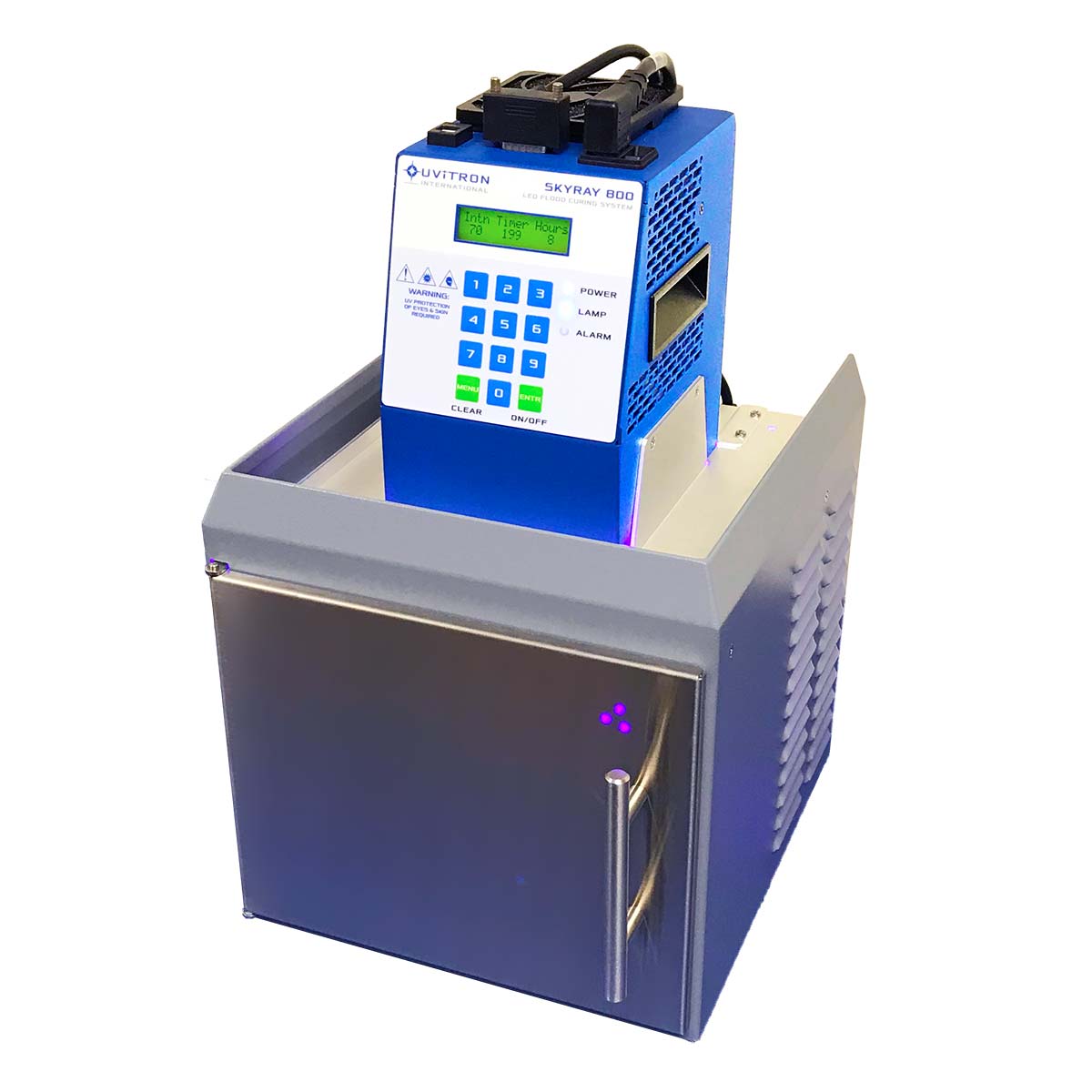

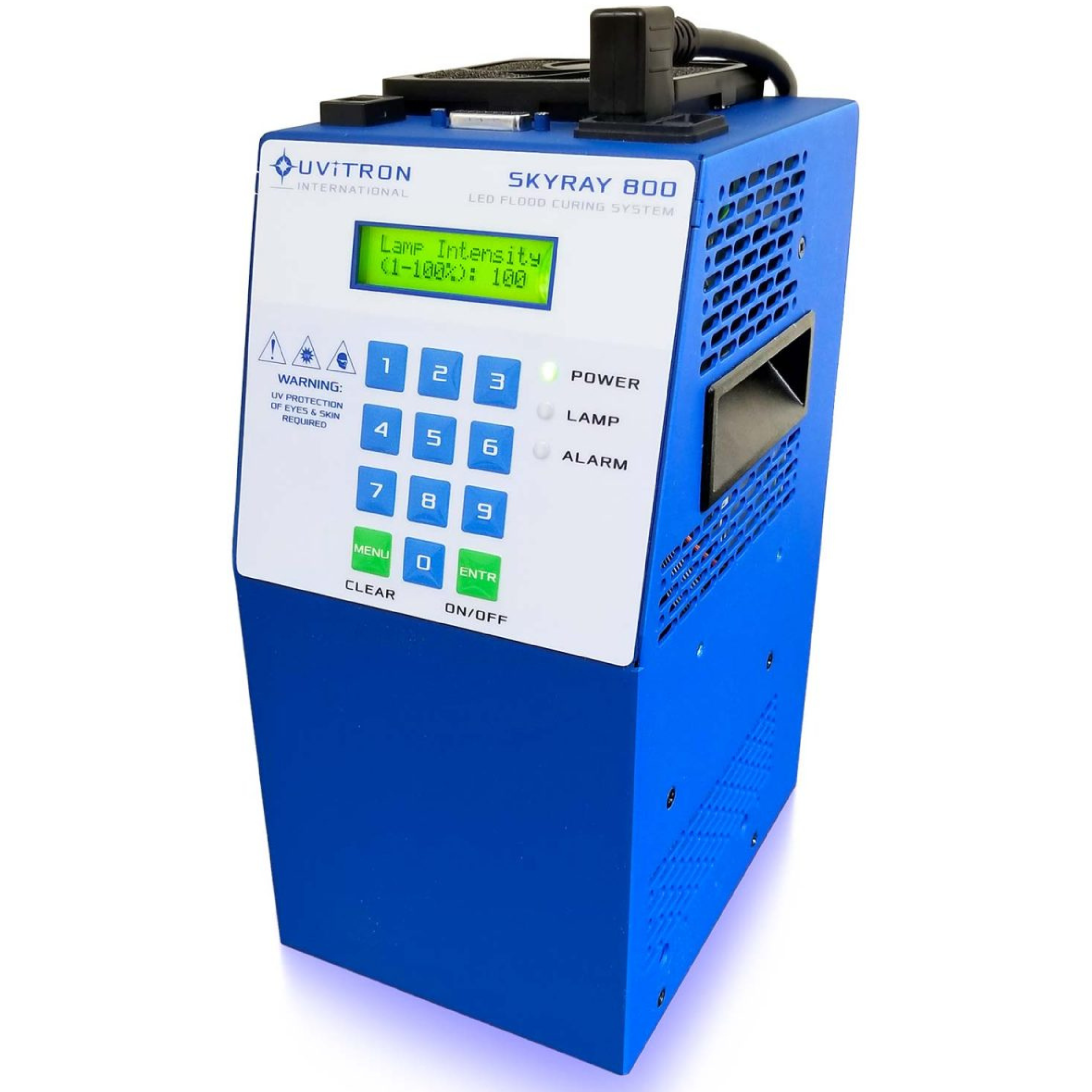

800W 365nm UV LED flood curing system and mounting bracket for Rayven

No Lamp System

This option removes any selected flood lamp systems from the quote

Accessories

Click to add any accessories below that you would like included in your quote. To view or price more accessories or replacement parts, visit our online store.

Stainless Steel Curing Tray - UV4268

Versatile stainless steel UV curing tray used with Rayven chamber for custom curing applications. Dimensions: 9" x 7" x 1".

Rubber Palm Work Gloves - UV3378-L

Provide UV light and temperature protection. Durable, rubber coating provides superior grip. Ergonomic design assures a snug fit and great dexterity. 100% polyester liner ensures comfortable wear. Seamless to reduce irritation in material handling and assembly applications. Size large, others sizes available.
