LEDCure™ Radiometer
UV LED radiometer accurately measures the energy generated by industrial UV LED systems with a patented “Total Measured Optic Response”
LEDCure™ Radiometer Product Summary

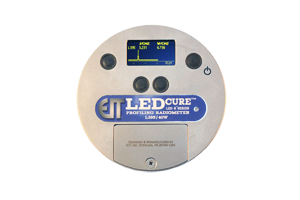

The LEDCure™ Radiometer provides a patented “Total Measured Optic Response.” Everything in the UV LED radiometer’s “optics stack” is included in the overall instrument response, not just the optical filter. The Total Measured Optic Response provides consistent, repeatable and accurate readings run to run, unit to unit and source to source.
Additional Details
- Easy to use format, provides irradiance (W/cm²) and energy density (J/cm²) values on the display as well as the irradiance profile
- Works with EIT’s UV PowerView III or PowerView II software
- Standard version shows all data on the display
- Display can be set to Graph or Reference Mode
- Profiler version shows data on the display plus downloads the irradiance profile (W/cm² as a function of time) to a computer for further analysis
- Profiler allows easy comparison of different LEDs, power levels, height above substrate and exposure time/line speed changes
- High dynamic range (40 W/cm²), user changeable battery
- Available in 4 different LED-specific response bands (L-bands)
Dimensions & Specs
| Specifications |
|
|---|---|
| Part # | UV4006 |
| Operating Range | 400 mW/cm2–40 W/cm2 |
| Spatial Response | Approximately cosine |
| Accuracy | ±10% of reading plus ±0.2% of full scale Typical ±5% or better |
| Material | Aluminum & Stainless Steel |
| Dimensions (D x H) | 117 x 12.7 mm |
| Weight | 10.1 oz (289 grams) |
| Carrying Case | Supplied with carrying case, cut polyurethane foam interior, scuff resistant nylon exterior cover |
Spectral Response Ranges
| Radiometer Name | Part Number | Description | Operating Range |
|---|---|---|---|
| LEDCure Four Band High Power | UV4006-4BD | LEDCure Four Band Radiometer, Spectral Response: L-365, L-385, L-395, L-405, High Power Range (40 W/cm²) | Moving applications: 0.2-40 W/cm2; Static applications: 0.1-40 W/cm2 |
| LEDCure Profiler Four Band High Power | UV4006-4BDP | LEDCure Profiler Four Band Radiometer, Spectral Response: L-365, L-385, L-395, L-405, High Power Range (40 W/cm²) | Moving applications: 0.2-40 W/cm2; Static applications: 0.1-40 W/cm2 |
| LEDCure Single Band High Power | UV4006-365-H | LEDCure Single Band Radiometer, L-365: Spectral Responce (340-392 nm), High Power Range (40 W/cm²) | Moving applications: 0.2-40 W/cm2; Static applications: 0.1-40 W/cm2 |
| LEDCure Single Band Low Power | UV4006-365-L | LEDCure Single Band Radiometer, L-365: Spectral Responce (340-392 nm), Low Power Range (400 mW/cm²) | 0.004-0.400 W/cm2 |
| LEDCure Profiler Single Band High Power | UV4006-365HP | LEDCure Profiler Single Band Radiometer, L-365: Spectral Responce (340-392 nm), High Power Range (40 W/cm²) | Moving applications: 0.2-40 W/cm2; Static applications: 0.1-40 W/cm2 |
| LEDCure Profiler Single Band Low Power | UV4006-365LP | LEDCure Profiler Single Band Radiometer, L-365: Spectral Responce (340-392 nm), Low Power Range (400 mW/cm²) | 0.004-0.400 W/cm2 |
| LEDCure Single Band High Power | UV4006-385-H | LEDCure Single Band Radiometer, L-385: Specral Response (360-412 nm), High Power Range (40 W/cm²) | Moving applications: 0.2-40 W/cm2; Static applications: 0.1-40 W/cm2 |
| LEDCure Single Band Low Power | UV4006-385-L | LEDCure Single Band Radiometer, L-385: Specral Response (360-412 nm), Low Power Range (400 mW/cm²) | 0.004-0.400 W/cm2 |
| LEDCure Profiler Single Band High Power | UV4006-385HP | LEDCure Profiler Single Band Radiometer, L-385: Specral Response (360-412 nm), High Power Range (40 W/cm²) | Moving applications: 0.2-40 W/cm2; Static applications: 0.1-40 W/cm2 |
| LEDCure Profiler Single Band Low Power | UV4006-385LP | LEDCure Profiler Single Band Radiometer, L-385: Specral Response (360-412 nm), Low Power Range (400 mW/cm²) | 0.004-0.400 W/cm2 |
| LEDCure Single Band High Power | UV4006-395-H | LEDCure Single Band Radiometer, L-395: Spectral Response (370-422 nm), High Power Range (40 W/cm²) | Moving applications: 0.2-40 W/cm2; Static applications: 0.1-40 W/cm2 |
| LEDCure Single Band Low Power | UV4006-395-L | LEDCure Single Band Radiometer, L-395: Spectral Response (370-422 nm), Low Power Range (400 mW/cm²) | 0.004-0.400 W/cm2 |
| LEDCure Profiler Single Band High Power | UV4006-395HP | LEDCure Profiler Single Band Radiometer, L-395: Spectral Response (370-422 nm), High Power Range (40 W/cm²) | Moving applications: 0.2-40 W/cm2; Static applications: 0.1-40 W/cm2 |
| LEDCure Profiler Single Band Low Power | UV4006-395LP | LEDCure Profiler Single Band Radiometer, L-395: Spectral Response (370-422 nm), Low Power Range (400 mW/cm²) | 0.004-0.400 W/cm2 |
| LEDCure Single Band High Power | UV4006-405-H | LEDCure Single Band Radiometer, L-405: Spectral Response (380-432 nm), High Power Range (40 W/cm²) | Moving applications: 0.2-40 W/cm2; Static applications: 0.1-40 W/cm2 |
| LEDCure Single Band Low Power | UV4006-405-L | LEDCure Single Band Radiometer, L-405: Spectral Response (380-432 nm), Low Power Range (400 mW/cm²) | 0.004-0.400 W/cm2 |
| LEDCure Profiler Single Band High Power | UV4006-405HP | LEDCure Profiler Single Band Radiometer, L-405: Spectral Response (380-432 nm), High Power Range (40 W/cm²) | Moving applications: 0.2-40 W/cm2; Static applications: 0.1-40 W/cm2 |
| LEDCure Profiler Single Band Low Power | UV4006-405LP | LEDCure Profiler Single Band Radiometer, L-405: Spectral Response (380-432 nm), Low Power Range (400 mW/cm²) | 0.004-0.400 W/cm2 |
