SunRay Quad

Large-area UV flood curing system

Expand AllCollapse
SunRay Quad Product Summary
Note: The SunRay Quad is a Legacy Product. It is no longer available for sale; however, we continue to offer support for existing customers and maintain the product pages for reference. We recommend our IntelliRay Quad for new customers.

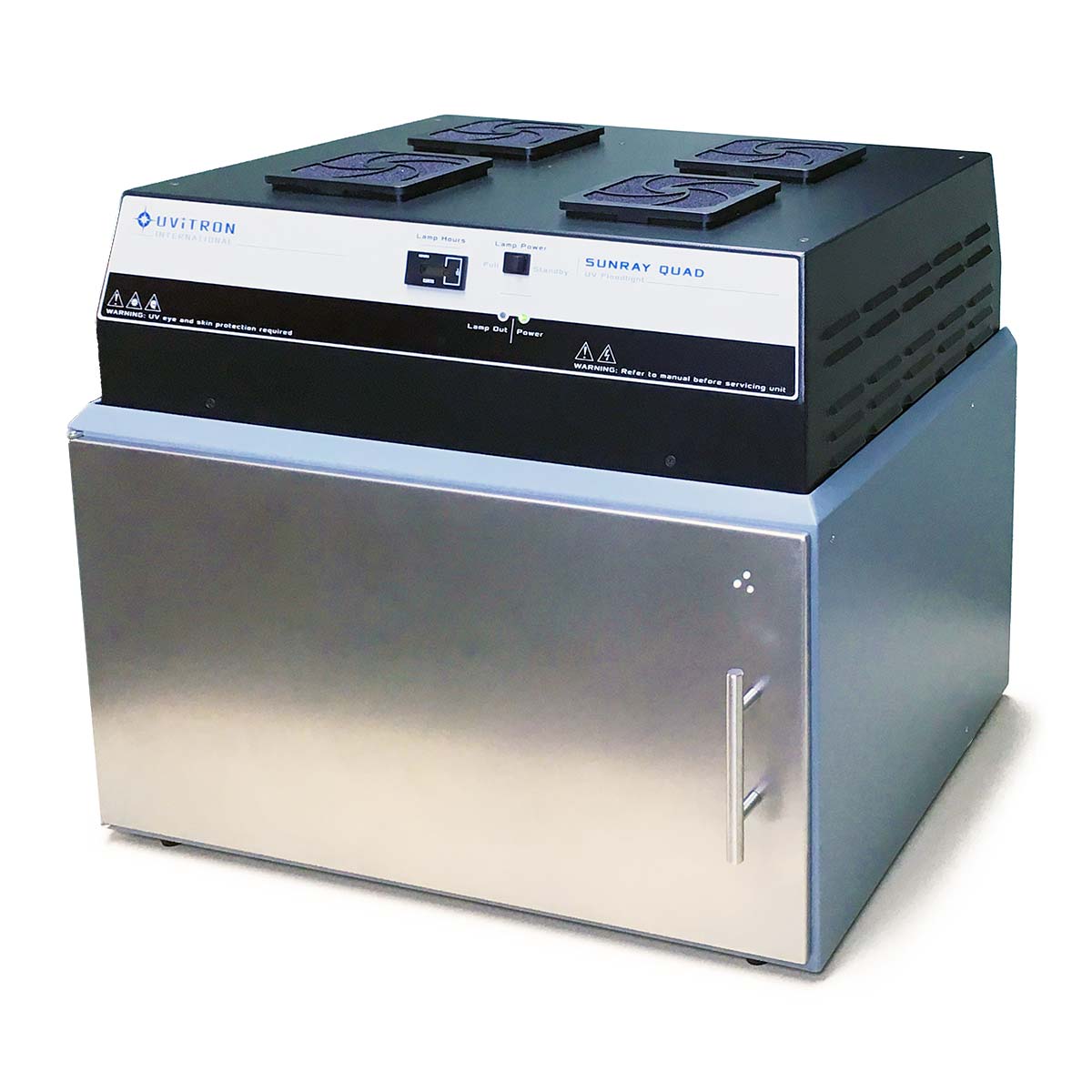

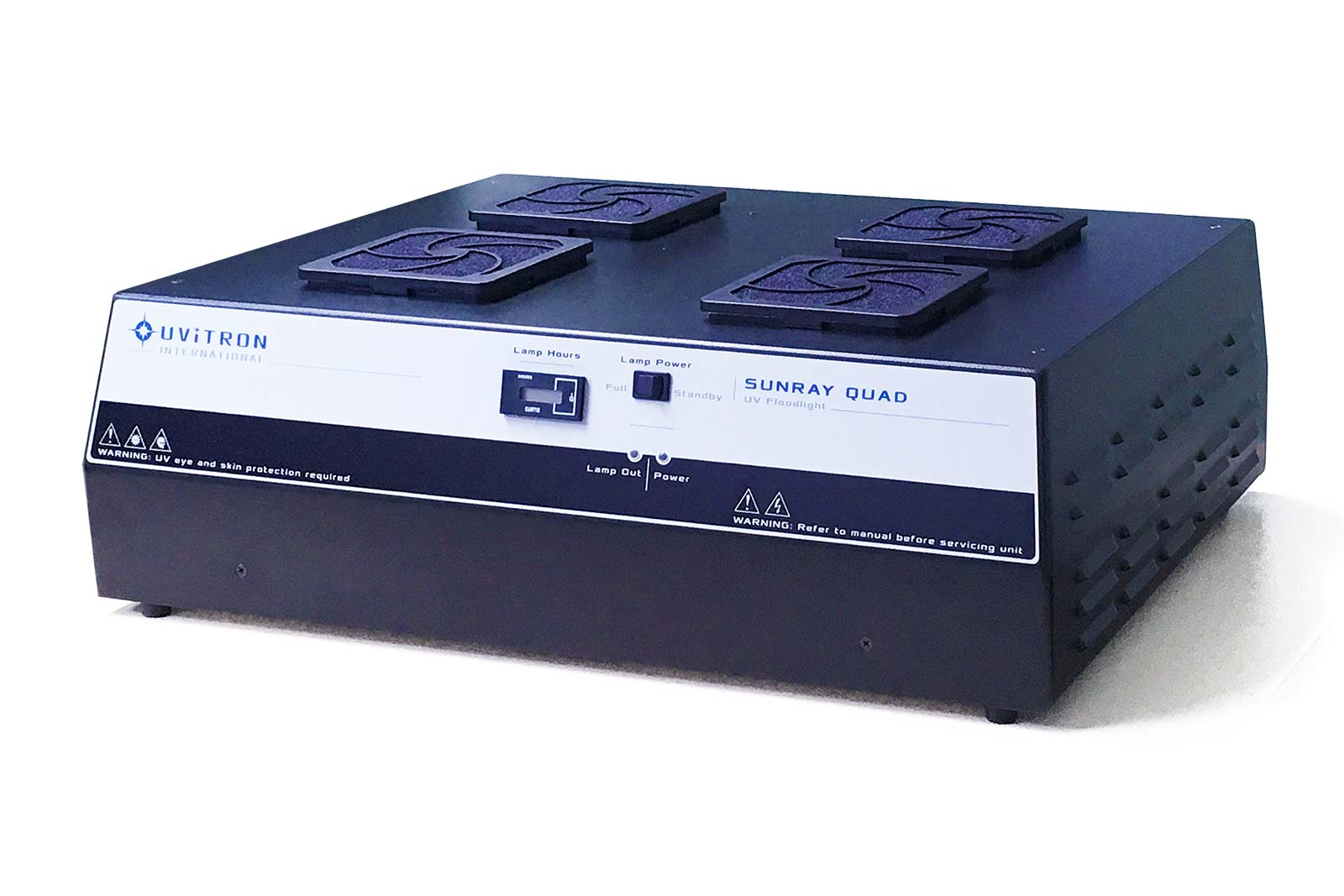

The SunRay Quad is a large-area UV light-curing flood lamp system. All components are integrated into a single unit that can be easily mounted on the optional Rayven Quad benchtop curing chamber or anywhere on a factory floor with virtually no cabling or remote power boxes required. Just mount the lamp head, connect the AC line cord and start timed exposure curing.

The four long-life arc lamps and parabolic reflectors illuminate a 16 x 12” curing area with evenly distributed UV light. The arc lamps are powered by the state-of-the-art UV Power-Plus Lamp Driver.

For a compact version of this system, see the SunRay.

Additional Details

Lamp power regulation: The system’s switch mode power supply maintains constant lamp power regardless of variations in AC line input or lamp voltages. This regulation provides for repeatable curing times and longer lamp life.

Standby mode: The unit features a standby mode rocker switch, which reduces lamp power when the system is idling. This mode can be used to reduce heat and stray UV light output while the system is not in use.

Front panel display and indicators: A front panel hour meter tracks lamp age, allowing for consistent lamp replacement scheduling. Lamp fault and system power-on LEDs provide system status information.

External logic signal interface: The system can be remotely monitored and controlled using logic signals available at a D-sub connector on the unit’s rear panel. Available signal types are:

  • Lamp standby input for variable PWM control of lamp intensity, or for minimizing of lamp power during idle periods
  • Lamp-out indicator activates if any lamp has extinguished
  • Hour meter reset input for zeroing hours display after lamp replacement
  • 24VDC at 2A output for powering external fans, relays, solenoids or motors

Forced air cooling: Variable speed cooling fans with removable filters direct air to critical system components, ensuring cool operation and high system reliability.

Best-in-class lamp life: The enhanced lamp life of the system rivals even microwave and LED systems, significantly lowering operating and maintenance costs.

Accessories & Options

Optional lamp spectrums: The SunRay Quad is available with UVA, UVB and visible spectrum lamps ensuring compatibility with adhesives and coatings from all manufacturers.



Dimensions & Specs
SunRay Quad Specifications
System TypeParabolic Flood Curing System
Part #UV2842
Lamp Power2400W (4 x 600W)
Input Voltage200–240 VAC ±10%
Input Current (Max)16 Amps
Irradiance @ 4"110 mW/cm2 UVA, typical
Curing Area16 x 12"
Weight24.5 lbs
Size (L x W x H)17.45 x 23 x 7.75”
Accessories Part Numbers
Part No.ItemDetails
UV2875Rayven QuadShielded Curing Chamber w/ shutter door interlock
UV2605Quad Flood Filter GlassReplacement filter glass for SunRay and IntelliRay Quad floods. Filters shortwave and infrared wavelengths
UV0526Logic Remote Interface CableControl from PLC or digital logic
(Multiple)Power cordsMultiple types available
(Multiple)UV Curing TrayStainless steel non-stick surface
UV1450-xxUvicure Plus II Integrating RadiometerUVA, UVB or Visible ranges, 10–10,000mW/cm2
UV0495UV/IR Protective Safety GlassesOTG (fit over prescription eyewear), 3.0 shade
UV02231UV/IR Protective Safety GlassesSport contour, 3.0 shade
UV01889UV Protective Face ShieldLift-up face shield ideal for maximum UV/Visible light protection, 4.0 shade
Replacement Lamps:
UV0834UVA Metal Halide Lamp600W medium pressure
UV1884UVB Enhanced Lamp600W medium pressure
UV1074Visible Metal Halide Lamp600W medium pressure, 420nm
