SunSpot 2

High-power, compact spot curing system

Expand AllCollapse

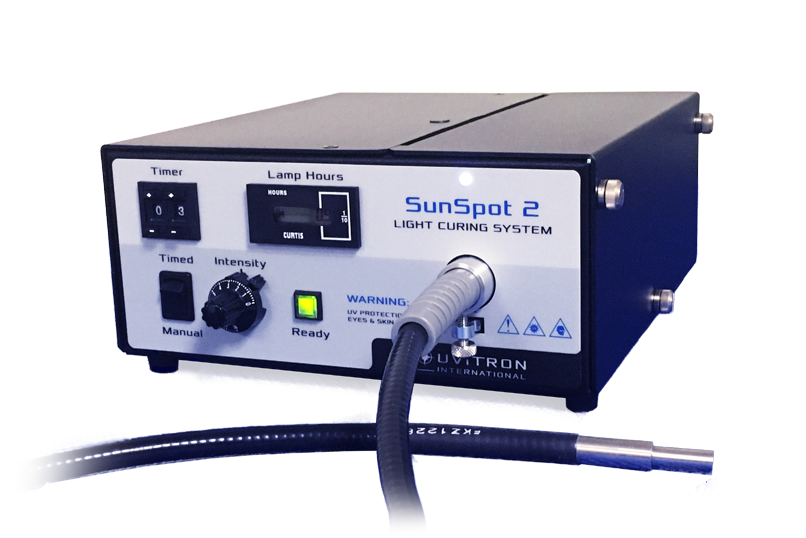

SunSpot 2 Product Summary

The SunSpot 2 is a next-generation, high-intensity, ultra-compact light curing system, and the industry’s price/performance leader. We designed it with a low cost of ownership in mind, as demonstrated through its best-in-class long-life UV / visible arc lamp and filtered input long-life light guide. The SunSpot 2 features easy-to-use exposure time controls and foot pedal activation. Weighing a mere 6 lbs. and measuring 10.5 x 8.6 x 4”, it is the smallest system in its class.

The SunSpot’s new 200W lamp delivers the highest intensity in the industry. With its 18+ W/cm2 UVA and > 30W/cm2 output from 300–50nm, the system maximizes curing speed and is compatible with high-speed production automation equipment. This high intensity also makes the SunSpot 2 ideal for use with multi-pole light guides for simultaneous light delivery to two, three or four curing zones, eliminating the need for multiple lamp systems. The system ships complete with a high output long life 5mm x 1m liquid light guide.

Additional Details

Cool light output: A dichroic-coated reflector reflects only the useable UV wavelengths of light through the light guide. The harmful high-temperature infrared is diverted away from the material being cured. A secondary in-line filter is used to further reduce heat for extremely sensitive applications.

Lamp intensity control: The SunSpot 2 has a user-adjustable front-panel locking intensity control, with a 35–100% combined power adjustment range. This provides the flexibility to choose appropriate curing intensity for sensitive materials and to regulate intensity at a given level as the lamp ages.

Timer-controlled shutter: An accurate 99-second, foot-pedal-initiated exposure timer and shutter free the operator’s hands for other tasks. At any time, a second press of the pedal immediately stops the exposure and closes the shutter. The timer can also be switched from timed to manual mode for operator control of curing duration, with the shutter remaining open only while the pedal is depressed.

Front panel indicators: A lamp ignited indicator illuminates when the lamp is lit, and a lamp ready LED signals when warm-up is complete. A resettable front panel hour meter tracks lamp age, allowing for consistent lamp replacement scheduling.

Light guide handle lock: The light guide receptacle includes a handle locking thumbscrew that prevents accidental guide pull-out and provides for easy multi-pole guide balancing.

External logic signal interface: The system can be remotely monitored and controlled using logic signals available at a 9 pin D-sub connector on the unit’s rear panel. The digital logic functions allow high-speed control of the SunSpot 2 for applications requiring a direct interface with machine controllers or PLCs. Control signals include lamp off, shutter open and hour meter reset. Monitoring signals include lamp ignited and lamp ready.

Lamp power regulation: The SunSpot’s switch-mode power supply maintains constant lamp power regardless of variations in AC line input or lamp voltages. This tight regulation results in stable light output, repeatable cure times and long lamp life.

Lamp auto-dim: The system automatically reduces lamp power to a low standby level when the shutter closes, instantly returning to full intensity when the shutter reopens. This auto dimming extends lamp life and reduces power consumption and unnecessary heating.

Quick-change lamp: The system’s side lamp access panel is easily removed by loosening thumbscrews, making the lamp / reflector module replacement possible in as little as one minute.

Safety interlocks: Two unique safety interlocks provide maximum protection during operation and maintenance procedures. The first automatically forces the shutter closed if the light guide is removed, preventing operator exposure to high-intensity light. The second immediately removes system AC input power when the lamp access panel is opened, protecting the operator from high voltages or high-intensity light present behind the panel.

Forced air cooling: The infrared regulated dual-fan cooling system directs air to critical system components, ensuring cool operation, maximum lamp life and system reliability.

Dimensions & Specifications
Specifications
System TypeFocused spot w/ light guide
Part #UV1853 (120VAC),
UV2132 (240VAC)
Lamp Power200W
Input Voltage100–120 or 200–240VAC ±10% ranges
Input Current (Max)4.7 Amps at 120V,
2.5 Amps at 240V
Irradiance18,000 mW/cm2 UVA
Curing Area1.5"/3.0" spot size at 1.5"/3.0" distance
Size (H x W x D), Weight4.05 x 8.64 x 10.51”, 5.92 lbs.
Light Guide Part Numbers

Liquid Light Guides (Single Pole)

Liquid-filled light guides have a higher transmission for UVA wavelengths and cost significantly less than fiber equivalents. The tradeoff is that the liquid guides do not have as long a life, especially for longer exposure times or when used for shorter wavelengths (i.e., UVB, UVC). Deep UV liquid guides with longer life for UVB are also available for slightly higher costs.

Liquid Light Guides (Single Pole)
UV0570*Liquid Light Guide, 1m x 5mm
UV0571*Liquid Light Guide, 1.5m x 5mm
UV0572*Liquid Light Guide, 2m x 5mm
UV0774Liquid Light Guide, 1m x 8mm
UV0775Liquid Light Guide, 1.5m x 8mm
UV0776Liquid Light Guide, 2m x 8mm
UV1195Liquid Light Guide, 3m x 8mm
UV3381*Liquid Light Guide, Deep UV, 1m x 5mm
UV1508*Liquid Light Guide, Deep UV, 1.5m x 5mm

Fiber Light Guides (Single Pole)

Fiber guides do not degrade with exposure over time and are best for high power and long UV light exposure times. However, their transmission is lower, and the cost is typically higher than for liquid-filled guides.

Fiber Light Guides (Single Pole)
UV0765Fiber Light Guide, 1m x 5mm
UV0766Fiber Light Guide, 1.5m x 5mm
UV0767Fiber Light Guide, 2m x 5mm
UV0768Fiber Light Guide, 1m x 8mm
UV0769Fiber Light Guide, 1.5m x 8mm
UV0770Fiber Light Guide, 2m x 8mm

Multi-Pole Light Guides

Multi-pole light guides are used for applications that require the light to be split and delivered to multiple cure targets. Liquid types have higher transmission, a well-balanced light output between legs and provide the best value. However, they can degrade with exposure over time. Fiber guides are also well suited for this purpose since they also ensure equal delivery of light regardless of guide rotation. Fiber guides are best suited for high power and long light exposures and do not degrade over time.

Multi-pole Light Guides
UV2168*2 Pole Liquid Light Guide, 1m, 5mm Common End
UV25874-Pole Liquid Light Guide
UV37022 Pole Fiber Light Guide, 1m, 5mm Common End
UV37032 Pole Fiber Light Guide, 1.5m, 5mm Common End
UV37042 Pole Fiber Light Guide, 2m, 5mm Common End
UV0575*2 Pole Fiber Light Guide, 2m, 5mm Common End (Metal Sheathing)
UV20053 Pole Fiber Light Guide, 1m, 5.2mm Common End
UV07944 Pole Fiber Light Guide, 1m, 5mm Common End
UV07954 Pole Fiber Light Guide, 1.5m, 5mm Common End
UV37734 Pole Fiber Light Guide, 2m, 5mm Common End

* Stocked light guides; others are special order

Video
SunSpot 2

Request Quote for SunSpot 2

Request a quote for the version of the SunSpot 2 UV spot curing system that best fits your needs.

Below you can choose from the different available models, components and accessories for this system. You can select each item one at a time or begin with the Default Configuration as a basis, and build from there.

If you have any questions contact us directly.

Quote Default Configuration
Remove System from Quote
UV1853 - SunSpot2System-1,SunSpot2InputVoltage-1,SunSpot2lamptypes-1,SunSpot2lightguidetypes-1
UV1853-NLG - SunSpot2System-1,SunSpot2InputVoltage-1,SunSpot2lamptypes-1,SunSpot2lightguidetypes-2
UV1853-NLG - SunSpot2System-1,SunSpot2InputVoltage-1,SunSpot2lamptypes-1,SunSpot2lightguidetypes-3
UV1853-NLG - SunSpot2System-1,SunSpot2InputVoltage-1,SunSpot2lamptypes-1,SunSpot2lightguidetypes-4
UV1853-NLG - SunSpot2System-1,SunSpot2InputVoltage-1,SunSpot2lamptypes-1,SunSpot2lightguidetypes-5
UV1853-NLG - SunSpot2System-1,SunSpot2InputVoltage-1,SunSpot2lamptypes-1,SunSpot2lightguidetypes-6
UV1853-NLG - SunSpot2System-1,SunSpot2InputVoltage-1,SunSpot2lamptypes-2,SunSpot2lightguidetypes-1
UV1853-NLG - SunSpot2System-1,SunSpot2InputVoltage-1,SunSpot2lamptypes-2,SunSpot2lightguidetypes-2
UV1853-NLG - SunSpot2System-1,SunSpot2InputVoltage-1,SunSpot2lamptypes-2,SunSpot2lightguidetypes-3
UV1853-NLG - SunSpot2System-1,SunSpot2InputVoltage-1,SunSpot2lamptypes-2,SunSpot2lightguidetypes-4
UV1853-NLG - SunSpot2System-1,SunSpot2InputVoltage-1,SunSpot2lamptypes-2,SunSpot2lightguidetypes-5
UV1853-NLG - SunSpot2System-1,SunSpot2InputVoltage-1,SunSpot2lamptypes-2,SunSpot2lightguidetypes-6
UV2132 - SunSpot2System-1,SunSpot2InputVoltage-2,SunSpot2lamptypes-1,SunSpot2lightguidetypes-1
UV2132-NLG - SunSpot2System-1,SunSpot2InputVoltage-2,SunSpot2lamptypes-1,SunSpot2lightguidetypes-2
UV2132-NLG - SunSpot2System-1,SunSpot2InputVoltage-2,SunSpot2lamptypes-1,SunSpot2lightguidetypes-3
UV2132-NLG - SunSpot2System-1,SunSpot2InputVoltage-2,SunSpot2lamptypes-1,SunSpot2lightguidetypes-4
UV2132-NLG - SunSpot2System-1,SunSpot2InputVoltage-2,SunSpot2lamptypes-1,SunSpot2lightguidetypes-5
UV2132-NLG - SunSpot2System-1,SunSpot2InputVoltage-2,SunSpot2lamptypes-1,SunSpot2lightguidetypes-6
UV2132-NLG - SunSpot2System-1,SunSpot2InputVoltage-2,SunSpot2lamptypes-2,SunSpot2lightguidetypes-1
UV2132-NLG - SunSpot2System-1,SunSpot2InputVoltage-2,SunSpot2lamptypes-2,SunSpot2lightguidetypes-2
UV2132-NLG - SunSpot2System-1,SunSpot2InputVoltage-2,SunSpot2lamptypes-2,SunSpot2lightguidetypes-3
UV2132-NLG - SunSpot2System-1,SunSpot2InputVoltage-2,SunSpot2lamptypes-2,SunSpot2lightguidetypes-4
UV2132-NLG - SunSpot2System-1,SunSpot2InputVoltage-2,SunSpot2lamptypes-2,SunSpot2lightguidetypes-5
UV2132-NLG - SunSpot2System-1,SunSpot2InputVoltage-2,SunSpot2lamptypes-2,SunSpot2lightguidetypes-6

System Type and Included Items

The default SunSpot 2 configuration comes with heat filter assembly, 200 Watt UVA enhanced arc lamp/reflector module, shutter control foot pedal, 1m x 5mm liquid filled light guide, UV/IR protective OTG glasses (5.0 shade with case), AC power cord (USA standard) and SunSpot 2 manual.

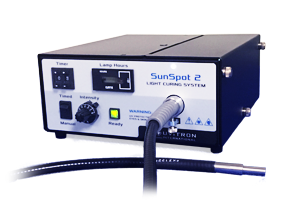

SunSpot 2 Base System

High-power spot curing system. Please select lamp and light guide types below.

Choose AC Input Voltage

The system is available in 90–132VAC and 180–265VAC input voltage ranges that make it compatible for use worldwide.

AC 120V

System configured for 120VAC input (90-132VAC range)

AC 240V

System configured for 240VAC input (180-265VAC range)

Choose Lamp Type

The SunSpot 2 is available with UVA and UVB spectrum lamps, ensuring compatibility with adhesives and coatings from all manufacturers.

200W UVA lamp/reflector module - UV1866

200W UVA enhanced arc lamp/reflector module for SunSpot 2 system

200W UVB lamp/reflector module - UV2170

200W UVB enhanced arc lamp/reflector module for SunSpot 2 system

Choose Light Guide Type

The SunSpot 2 is available with many light guide types, some of which are listed below. For a complete list of available light guides visit online store.

Liquid light guide (1m x 5mm) - UV0570

Standard liquid filled light guide, PVC sheathing. Dimensions: 5mm core diameter and 1m length.

Liquid light guide (2m x 5mm) - UV0572

Liquid filled light guide, PVC sheathing. Dimensions: 5mm core diameter and 2m length. Ideal for applications requiring longer reach.

Liquid light guide (1m x 8mm) - UV0774

Liquid filled light guide, PVC sheathing. Dimensions: 8mm core diameter and 1m length. Ideal for applications requiring larger exposure spot profile.

Deep UV liquid light guide (1m x 5mm) - UV3381

Deep UV liquid filled light guide, PVC sheathing. Dimensions: 5mm core diameter and 1m length. Ideal for applications requiring maximum intensity in UVB and UVC bandwidths.

Bifurcated liquid light guide (1m x 5mm) - UV2168

Two-pole liquid filled light guide, PVC sheathing. Dimensions: 5mm common core diameter and 1m length. Ideal for applications requiring the light to be split and delivered to multiple cure targets.

Bifurcated fiber light guide (2m x 5mm) - UV0575

Two-pole quartz fiber filled light guide, SS sheathing. Dimensions: 5mm common core diameter and 2m length. Ideal for applications requiring the light to be split and delivered to multiple cure targets for long UV light exposures.

Accessories

Click to add any accessories below that you would like included in your quote. To view or price more accessories or replacement parts, visit our online store.

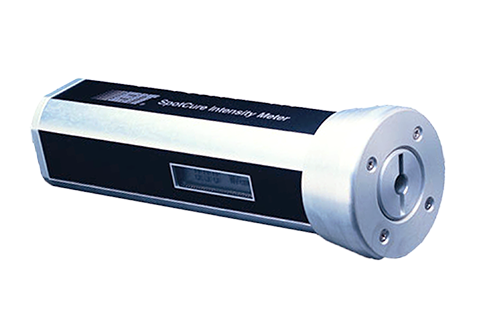

SpotCure Radiometer - UV0567-EA

Monitors the output of a UV spot curing system. Provides indication of lamp, reflector, filter and light guide degradation. Measures intensities up to 200W/cm² Includes carrying case and several different size light guide adapters for maximum flexibility.

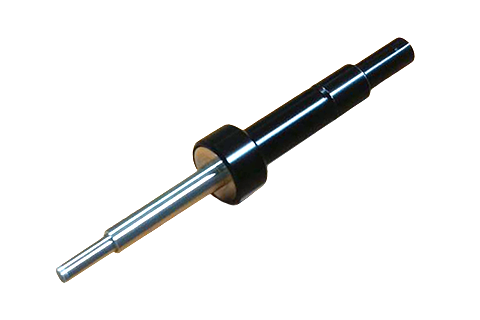

Reference Rod - UV2360

Light guide reference rod used with UV0567 SpotCure radiometer above for measuring light guide, lamp or filter degradation.

Power Puck II Radiometer - UV1451-H

Four Channel, High Power Radiometer to monitor SunSpot 2 intensity output in the UVA, UVB, UVC and UVV bandwidths (250-445nm) (used in conjunction with Light Guide Fixture UV4244-10). Measures intensities up to 10 W/cm². Ideal for measuring UV lamp performance (and possible bandwidth shift for doped lamps). Includes carrying case. For other power options visit online store.

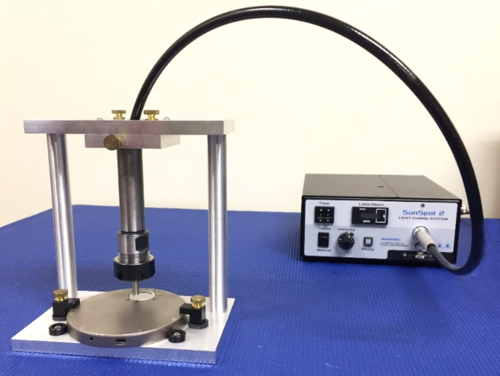

Puck Radiometer Light Guide Fixture - UV4244-10

The UV4244 Puck Radiometer Light Guide Fixture allows the measurement of light output from SunSpot 2 curing system light guide using either of the EIT puck style radiometers (UVICURE Plus II, UV Power Puck II). This fixture is ideal for use in the following cases: Measurement of either UVB or UVC output of a broad-spectrum arc lamp spot curing system; Measurement of multiple wavelength bands of light guide output using a single radiometer e.g. Power Puck II; Measurement of arc lamp or LED light guide output at a variable distance from the guide output tip.

Collimating Adaptor for Liquid Light Guides - UV4658

The UV-SPOTLIGHT collimating adaptor converts the small concentrated output of a spot UV light source to a larger diameter homogeneous exposure area. The adaptor has a small aperture angle, providing near collimation of the light output.

Add to Quote

Quote Sheet

X
*NOTE: The quote sheet is separate from your shopping cart. This is for submiting a quote request for our Custom Systems.
Quote Cart
