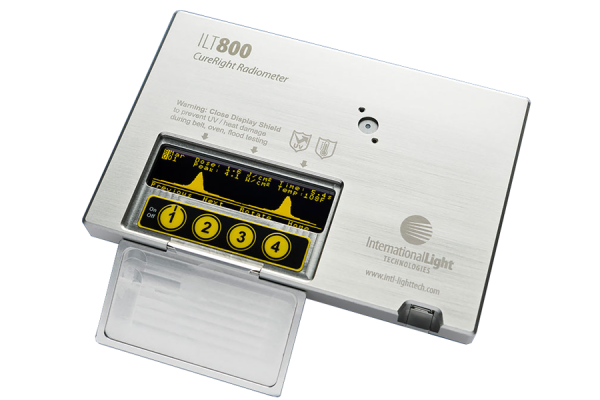

ILT800 CureRight Radiometer


Part #: UV4024 Categories: ,


The ILT800 CureRight is a feature-rich profiling UV radiometer that delivers unmatched flexibility and capability not found in any other system.  With a 4.5 decade Detection Range (5 mW/cm² to 40 W/cm²), the ILT800 Radiometer meets a broad range of applications across a variety of light measurement needs.  The system has been designed with the varying needs of its users in mind, and can be configured and customized to your unique environment.

The ILT800 CureRight series is designed to measure and validate all types of UV curing methods and sources including conveyor, belt, oven, flood, area, spot, fiber optic, collimated beam, side cure, 180° curing, 3D printing, pulsed and traditional UV lamps, and UV/VIS LEDs & light sources.

The ILT800 CureRight system outperforms the competitors with features such as profiling of current/previous/stored measurements, ability to monitor, measure, view and export the date, time, temperature, irradiance, dose, cal due date, model and serial number, and battery status.  User programmable settings include minimum light level threshold, lamp-to-lamp measurement interval (delay), time to auto shutoff, and auto/manual/live measurement modes.  The ILT800 is the only radiometer with Device ID which allows users to program up to 20 unique system/source information, allowing users to store and export baselines and historical data for all their curing stations in one economically priced meter. (more…)


  • Largest measurement range at 4.5 decades
  • 5 mW/cm² to 40 W/cm²

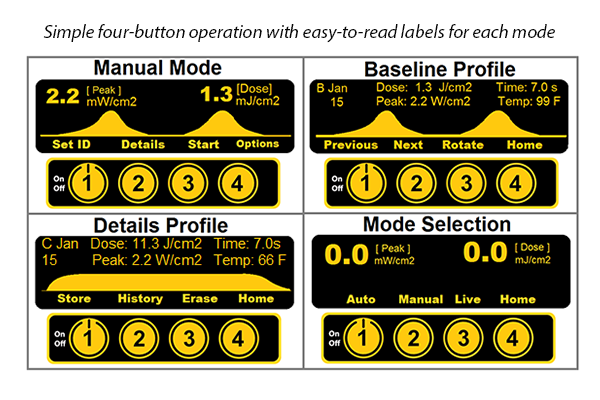

  • Effortless results, clear data, easily identifies problem
  • Profiling is standard
  • 3000 samples per second
  • Integration for up to 10 minutes
  • Measure pulsed and continuous sources
  • Store/Recall up to 1000 profiles
  • Mapping: face horizontally, vertically, up or down
  • Linear response- no range selection required
  • Temperature measurement
  • Low battery warning
  • Made in USA
  • ISO17025

Documents & Dowloads:

Additional information

Weight 3 lbs
Dimensions N/A

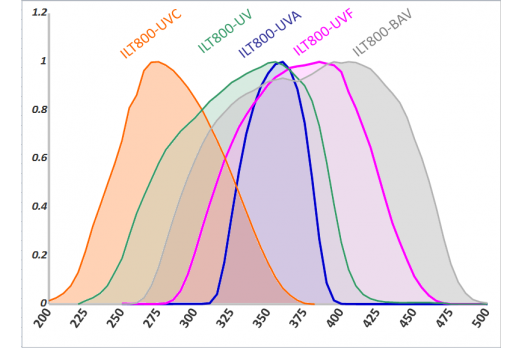

275 – 450 nm, (360 – 400 nm Flat) – [UV4024-UVF] (Standard), 315 – 390 nm – [UV4024-UVA], 275 – 475 nm – [UV4024-BAV], 250 – 400 nm – [UV4024-UV], 215 – 350 nm – [UV4024-CUV]


Lead Time: 5-10 business days to allow for unit calibration before shipment (does not include transit time). This item is special order and thus is non-cancelable and non-returnable.
