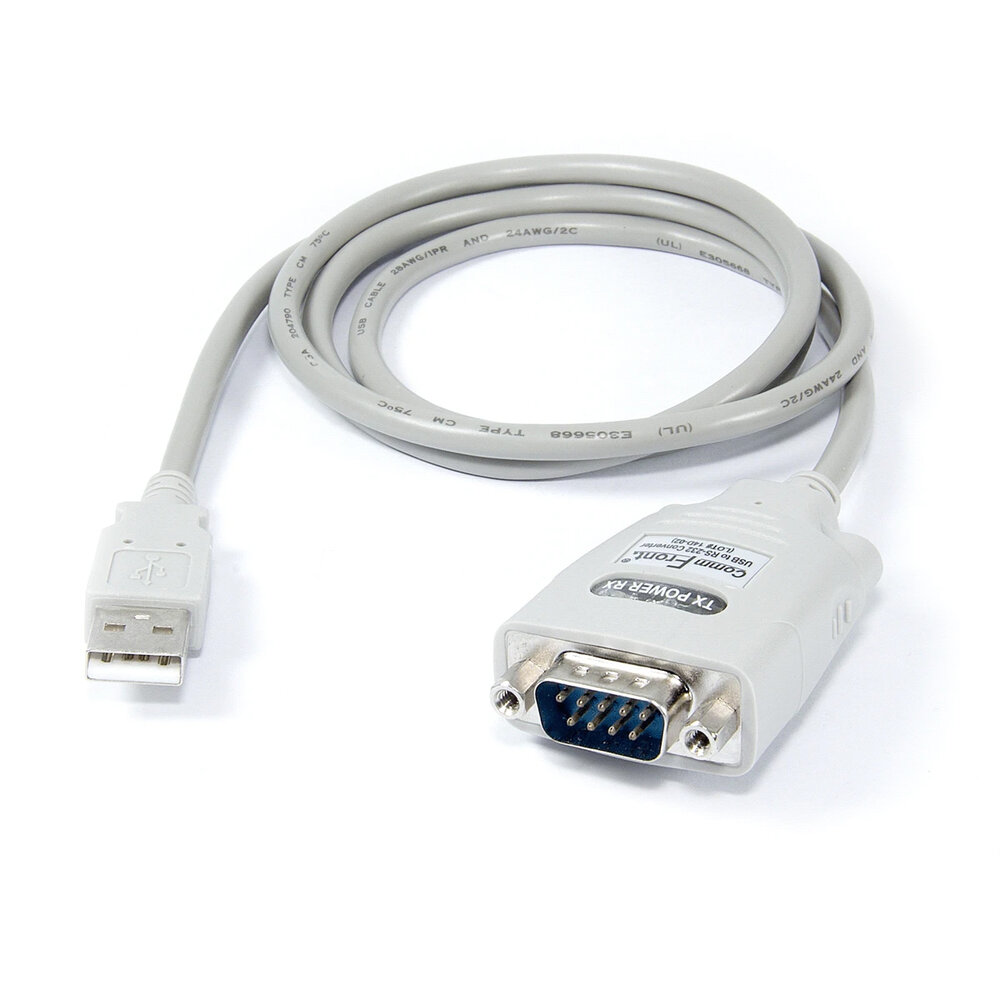

USB to RS232 Adapter / Converter


Part #: UV4704 Category:


This converter can be used with the IntelliRay, IntelliRay Quad or SkyBeam units. Note that since the IntelliRay units do not have a dedicated 9 pin DSUB RS232 to directly connect to this converter, the UV0525 IntelliRay 15 pin to 9 pin RS232 adapter cable will be needed.

The USB-232-1 is a port-powered, bi-directional USB to RS232 adapter / converter that can be used to convert any standard USB port (USB 2.0 – backward compatible) into a RS232C port and vice versa. This high-quality, high-performance USB to RS232 adapter / converter uses the latest FTDI chipset and is fully compatible with Windows 10, Windows 8, Windows 7 / Vista / XP / Server2008 / Server2003 / 2000 / 98 (32-bit), Windows 10, Windows 8, Windows 7 / Vista / XP / Server2008 / Server2003 (64-bit), Win CE, Mac, Linux, and Raspberry Pi. The unit comes with a USB type A male connector on the USB side and a DB9 male connector on the RS232 side.


  • Compatibility: USB 2.0 (backward compatible) and EIA/TIA RS-232C standard
  • Power Source: Port power from USB port
  • Current Consumption: Less than 100mA
  • Cable length: 3.3ft (1m)
  • Baud Rates: 300 to 128,000bps (Auto-sensing & Self-adjusting)
  • Distance: USB side: 10ft (3m); RS232 side: 16ft (5m)
  • Connector: USB side: Type A Male; RS-232 side: DB-9 Male
  • LEDs: TX, RX, and Power
  • Dimensions (H x W x D): 0.6 x 1.4 x 2.2 in (15 x 35 x 55 mm) (excluding cable)
  • Weight: 2.6 oz (73 g)
  • Operating Temperature: 32ºF to 95ºF (0ºC to 35ºC)
  • Operating Humidity: Up to 90% RH (no condensation)
