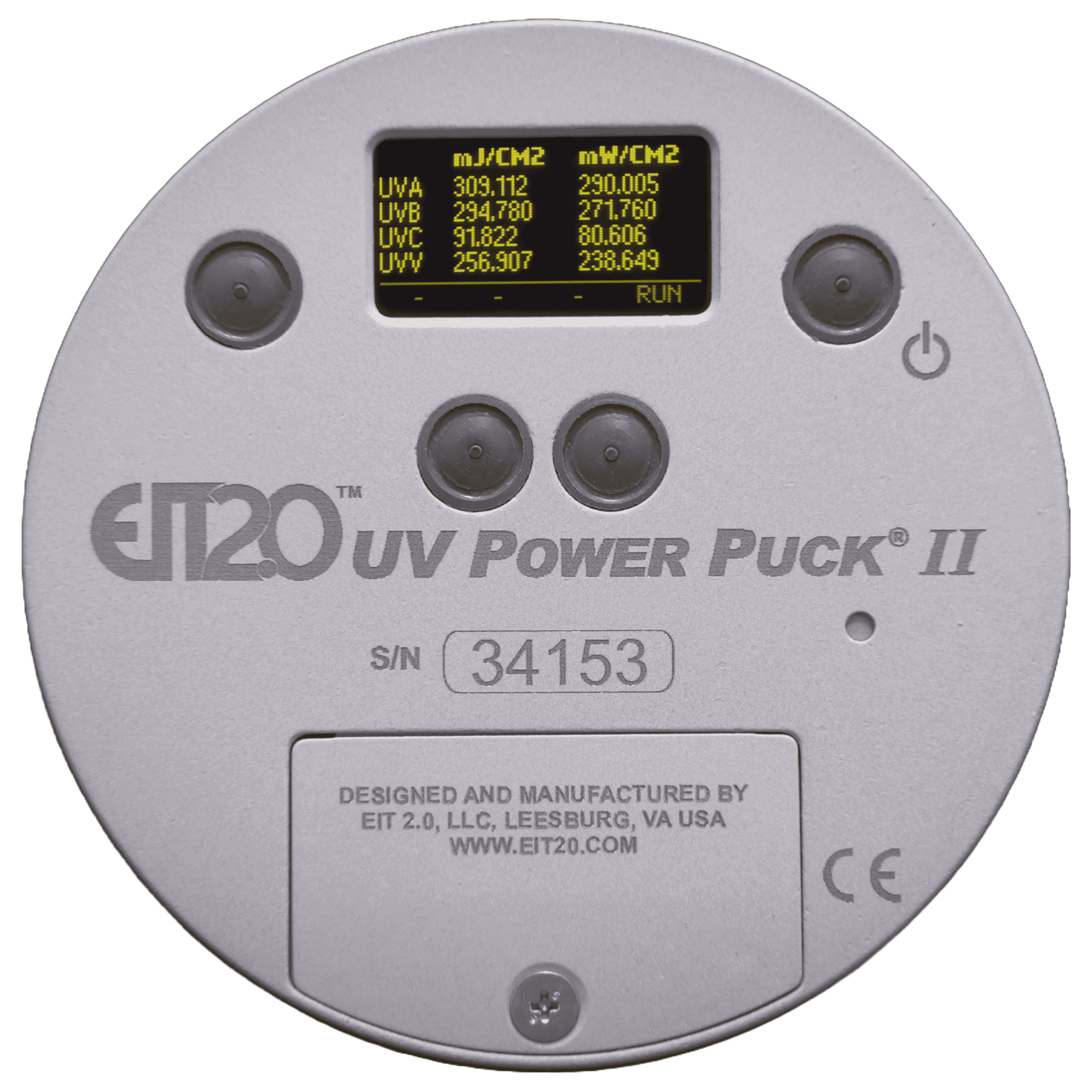

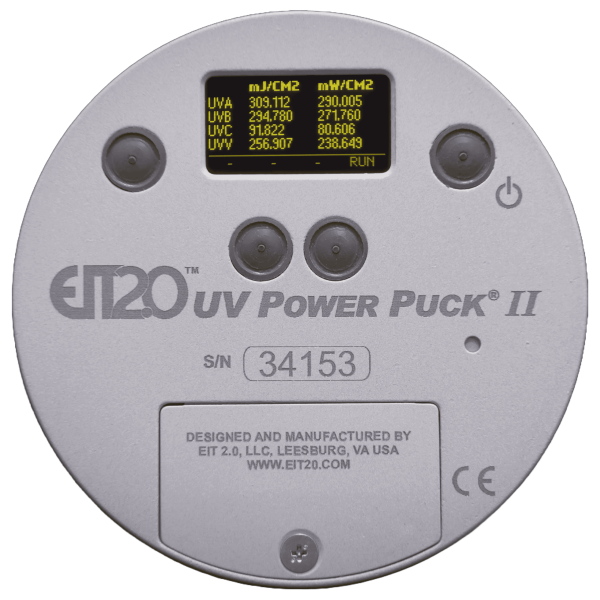

Power Puck II Radiometer


Up to 1

Part #: UV1451 Categories: ,


Up to 10 W/cm² (3 measurement power ranges available), Selectable 4 channel, 250-445nm, available in either Standard version that allows display of data on unit LCD display only, or Profiler version that transfers the data including the irradiance profile to a computer. (more…)


  • Used in curing applications of inks, adhesives, soldermasks, and epoxies (not for use in web press applications)
  • Incorporates four separate spectral response ranges and measures all four simultaneously
  • Display scrolls through UV dosage in Joules/cm2 and peak UV intensity in Watts/cm2 of all four separate UV spectral response ranges
  • Measures UV lamp performance (and possible bandwidth shift for doped lamps)
  • Compares the efficiencies of different UV curing systems
  • Includes carrying case
  • Profiler version utilizes EIT’s UV PowerView Software® III that allows for further analysis, comparison and evaluation on a PC.

Operating Ranges:

High Power:

  • UVA, UVB, UVV: 100-10000 mW/cm²
  • UVC: 10-1000 mW/cm²

Mid Power:

  • UVA, UVB, UVV: 10-1000 mW/cm²
  • UVC: 1-100 mW/cm²

Low Power:

  • UVA, UVB, UVV, UVC: 1-100 mW/cm²


PowerPuck II /UviCure Plus II Brochure

PowerPuck II Profiler /UviCure Plus II Profiler Brochure

Additional information

Weight 3 lbs
Dimensions N/A
Profiler Option

Standard, Profiler

Operating Range

1-100 mW/cm², 10-1000 mW/cm², 100-10000 mW/cm²


Lead Time: Due to recent high demand, please allow 4-6 weeks for assembly and calibration before shipment (does not include transit time). This item is special order and thus is non-cancelable and non-returnable.
