Description

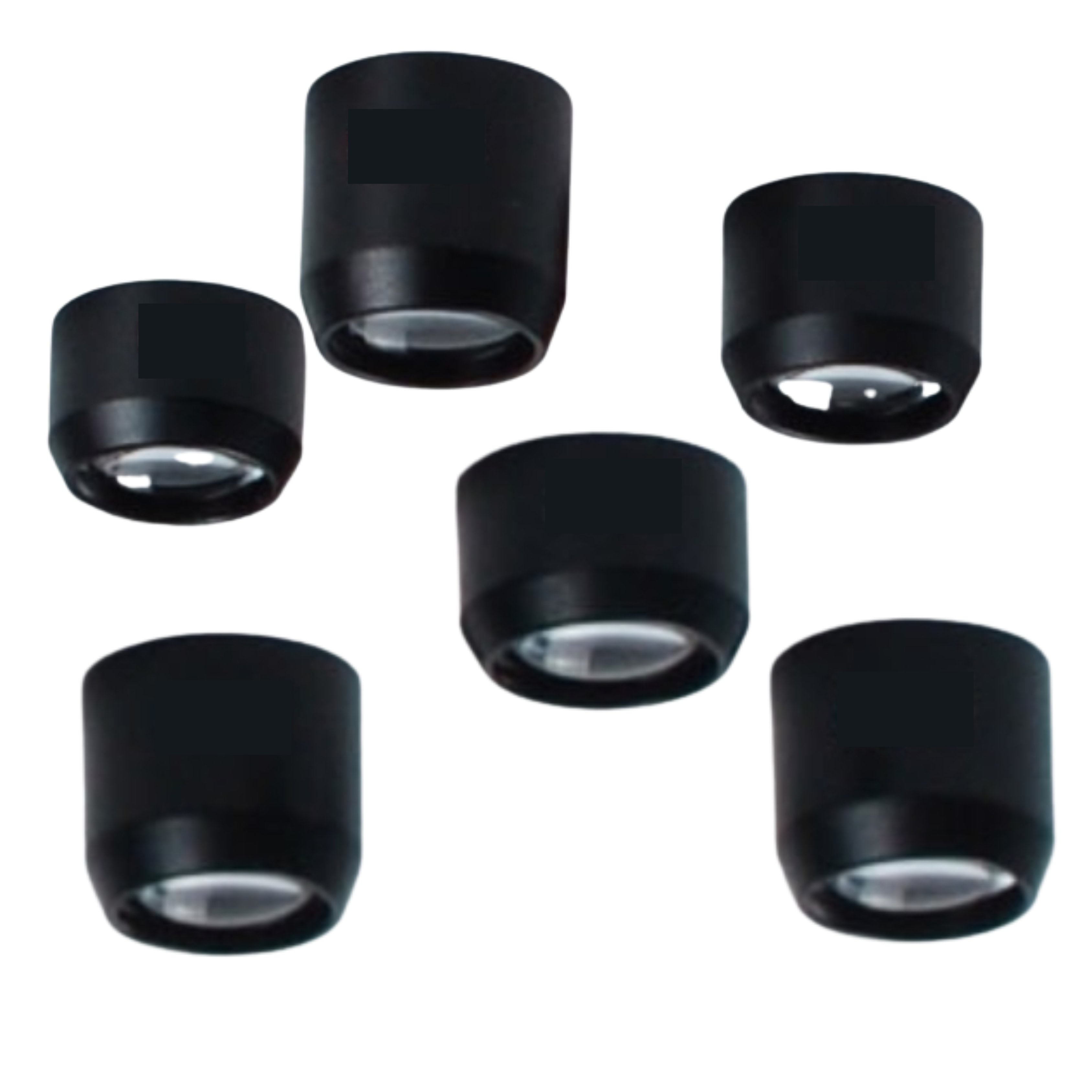

Introducing our high-performance lenses, specifically designed for the SkyBeam and SkyWand LED spot curing systems. These versatile lenses are available in 4mm, 6mm, 12mm, and 15mm sizes, offering unparalleled precision and control for your curing applications.
Our lenses ensure optimal light distribution and curing efficiency, providing a range of options to suit your specific needs. Made from high-quality materials, these lenses are durable, easy to install, and deliver consistent performance over time. Designed for seamless compatibility with our SkyBeam and SkyWand systems, these lenses allow for precise control, making them ideal for a variety of applications, from medical devices to electronics manufacturing.
Choose the perfect size for your application, whether you need the precision of a 4mm lens for detailed work or the broader coverage provided by the 15mm lens. With their exceptional light distribution and curing capabilities, our lenses for SkyBeam and SkyWand LED spot curing systems are the perfect solution for your professional needs.

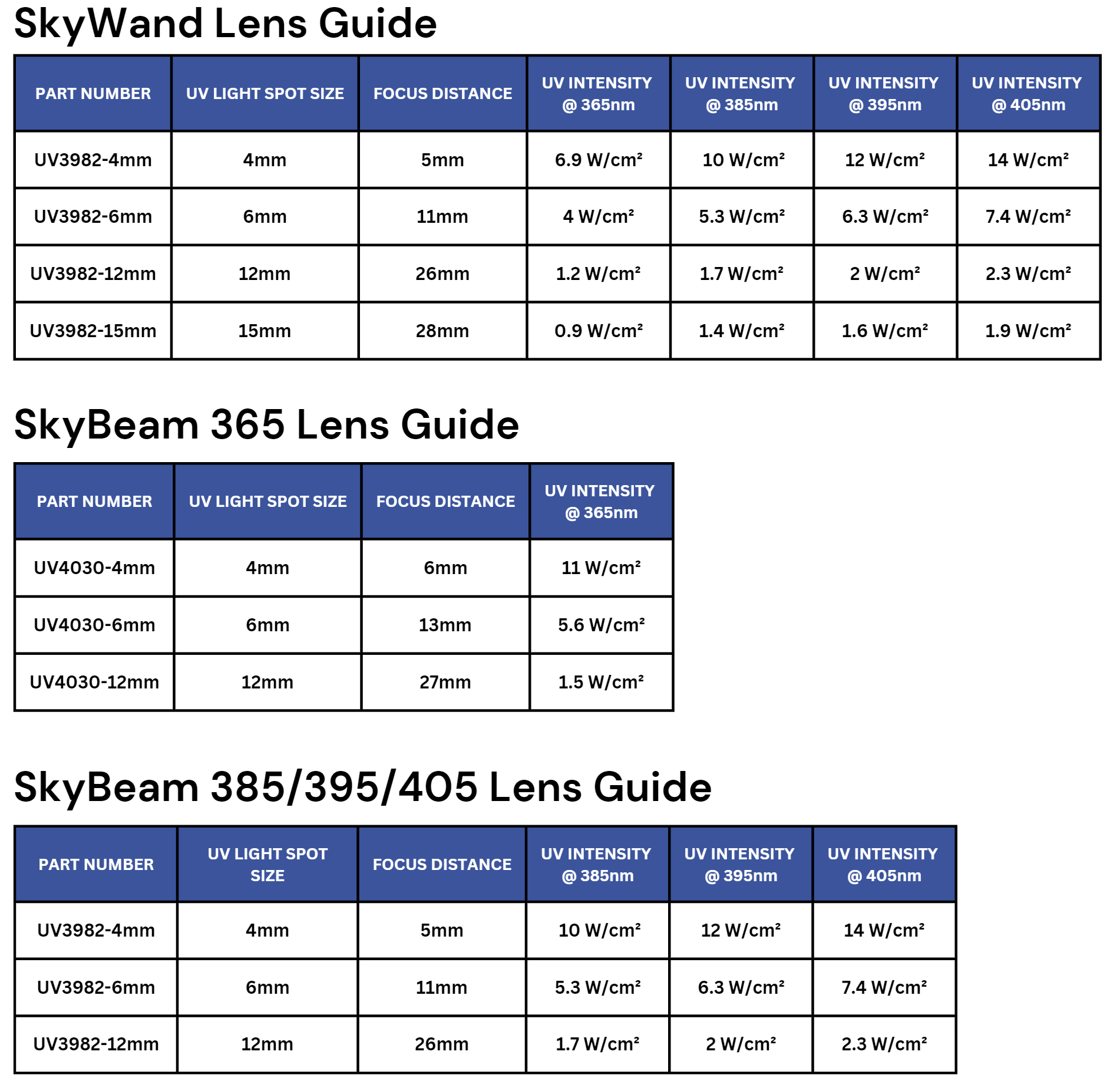

SkyWand Lens Guide
| Part Number | UV Light Spot Size | Focus Distance | UV Intensity @ 365nm | UV Intensity @ 385nm | UV Intensity @ 395nm | UV Intensity @ 405nm |
|---|---|---|---|---|---|---|
| UV3982-4mm | 4 mm | 5 mm | 6.9 W/cm² | 10 W/cm² | 12 W/cm² | 14 W/cm² |
| UV3982-6mm | 6 mm | 11 mm | 4 W/cm² | 5.3 W/cm² | 6.3 W/cm² | 7.4 W/cm² |
| UV3982-12mm | 12 mm | 26 mm | 1.2 W/cm² | 1.7 W/cm² | 2 W/cm² | 2.3 W/cm² |
| UV3982-15mm | 15 mm | 28 mm | 0.9 W/cm² | 1.4 W/cm² | 1.6 W/cm² | 1.9 W/cm² |
SkyBeam 365 Lens Guide
| Part Number | UV Light Spot Size | Focus Distance | UV Intensity @ 365nm |
|---|---|---|---|
| UV4030-3mm | 3 mm | 6 mm | 11 W/cm² |
| UV4030-4mm | 4 mm | 7 mm | 8.5 W/cm² |
| UV4030-12mm | 12 mm | 27 mm | 1.5 W/cm² |
| UV4030-15mm | 15 mm | 35 mm | 0.9 W/cm² |
SkyBeam 385/395/405 Lens Guide
| Part Number | UV Light Spot Size | Focus Distance | UV Intensity @ 385nm | UV Intensity @ 395nm | UV Intensity @ 405nm |
|---|---|---|---|---|---|
| UV3982-4mm | 4 mm | 5 mm | 10 W/cm² | 12 W/cm² | 14 W/cm² |
| UV3982-6mm | 6 mm | 11 mm | 5.3 W/cm² | 6.3 W/cm² | 7.4 W/cm² |
| UV3982-12mm | 12 mm | 26 mm | 1.7 W/cm² | 2 W/cm² | 2.3 W/cm² |
| UV3982-15MM | 15 mm | 28 mm | 1.4 W/cm² | 1.6 W/cm² | 1.9 W/cm² |
