MicroCure Sensor and Data Reader

$409.00$1,952.00

Part #: N/A Category:

Description

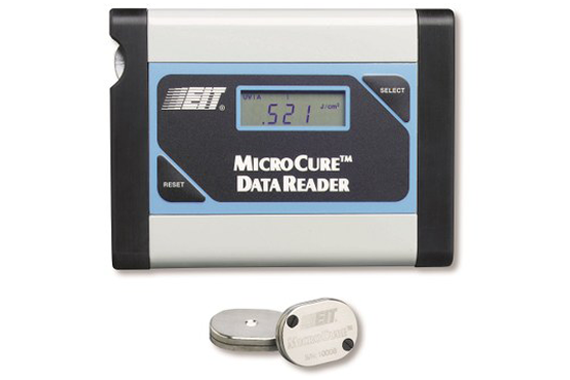

EIT’s MicroCure® measurement system is comprised of two separate stand-alone items; the data collection radiometer which is placed in the ultraviolet (UV) environment to be measured, and a DataReader which reads and displays the measurement results from the radiometer.

The UV integrating radiometer is a microprocessor-based, electro-optical instrument that measures and accumulates the total UV energy that is applied to the measurement surface of the instrument. The MicroCure® radiometer measures the total amount of UV energy that would be impinged on a work piece passing through the curing system and the peak UV irradiance. The radiometer combines very small physical size and adaptability to address a variety of demanding physical and thermal measurement environments.

Features

  • Small Size: 1.3” x 0.95” x 0.25”

  • Lightweight: 0.33 ounces

  • Measures total energy density in Joules/cm²

  • Measures peak power density in Watts/cm²

  • Battery powered

  • High sample rate: 2000 Samples per second

  • Automatic operation

  • High temperature resistance

Applications

  • UV systems requiring small size and automatic operation

  • Small container curing (bottles, cans, etc.)

  • Three-dimensional objects

  • Web printing

  • Very small conveyorized and batch applications (semiconductor printing, small part bonders, etc.)

  • Statistical Process Control measurements

MicroCure Technical Specifications

Additional information

Weight 3 lbs
Dimensions 12 × 12 × 5 in
Components

Kit (2 Sensors & 1 Data Reader), Sensor Only, Data Reader Only

Power Range

100 mW/cm² to 2W/cm², 500 mW/cm² to 10W/cm², Data Reader Only

Acknowledgment

Lead Time: Due to recent high demand, please allow 6 weeks for assembly and calibration before shipment (does not include transit time). This item is special order and thus is non-cancelable and non-returnable.
