IS310 UV Logger

$699.00

Part #: UV4007 Categories: ,

Description

Detection Range: 0.002 W/cm² to 3 W/cm² UVA and UVB (more…)

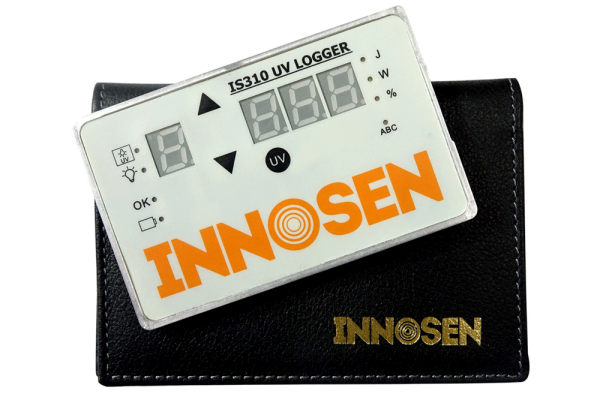

The IS310 UV Logger is the only credit card-sized measurement device that accurately measures the overall UV energy in the oven as well as the power & energy being emitted by each of the UV lamps separately.

The recording of data for each individual lamp makes it a unique logger and eases traceability and maintenance of lamps.

Benefits:

  • Helps you determine whether you need to:
    • Increase the lamp current
    • Replace or reposition the lamp or the reflector, individually
    • Clean or change the reflector
  • Prevents scrap and costly downtime due to inefficient curing
  • Achieve consistent UV curing – improve quality
  • Avoid under-curing
  • Monitor UV oven efficiency

Features:

  • Gives you separate readings for each lamp in your oven
  • Stores data for up to 9 lamps in 9 different ovens
  • 6mm (0.24”) thick
    *This means it will go underneath most safety barriers and it measures close to the substrate to give a more accurate reading of the light intensity where the curing takes place
  • Measures 2 parameters for each lamp:
  • UV energy transmitted in Joules/cm²
  • Peak lamp power in Watts/cm²
  • Comes with free PC data analysis software

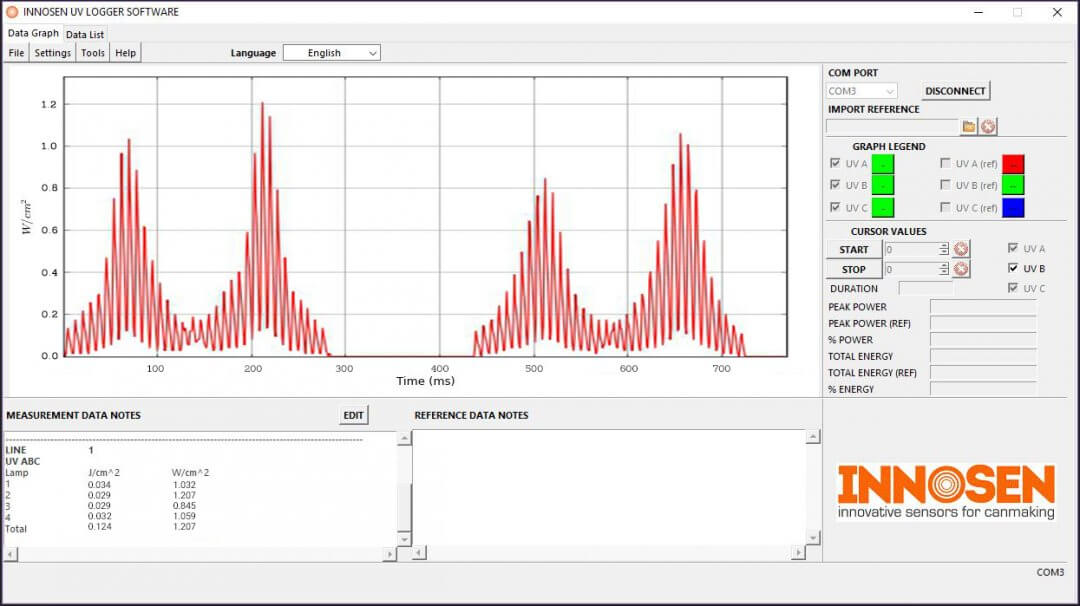

It also comes with free PC data analysis software that presents data as graphs for efficient management of lamps and reflectors to ensure a consistent and reliable curing of lacquers, inks, adhesives. etc.

Documents:

UV Logger Specifications

Measure UV Lamps Infographic

Repeatable Curing Process Infographic

Additional information

Weight 1 lbs
Dimensions 5.5 × 4 × 1.25 in

Acknowledgment

Lead Time: 4-10 days to allow for calibration before shipment (does not include transit time). This item is special order and thus is non-cancelable and non-returnable.
